Why it matters
Built for how you actually get home.
A Glass Door Lock Managed Entirely from Your Phone

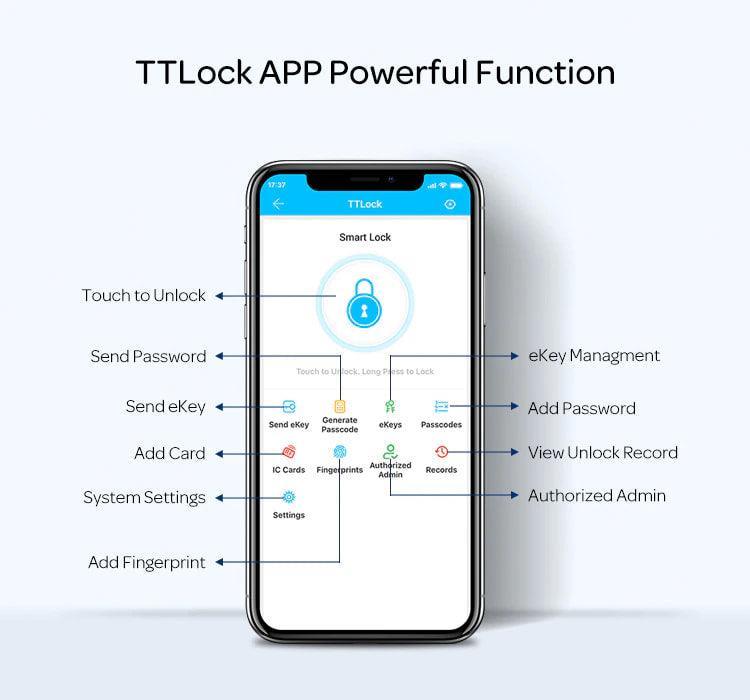

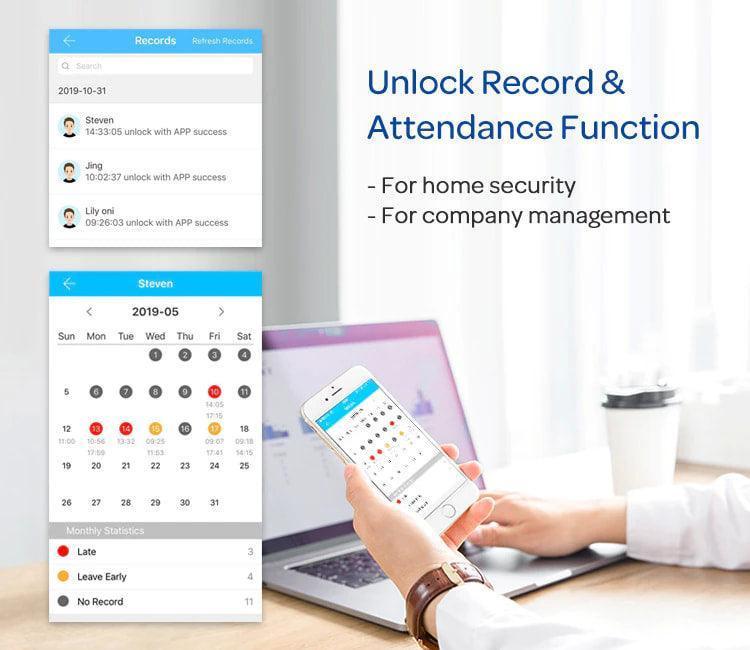

The Interlock ILG-02 is built for glass doors and managed through the TTLock app, giving you owner, admin and guest access levels with full activity logs of who unlocked the door and when — a level of oversight a traditional key simply can't offer.
Ways to Unlock

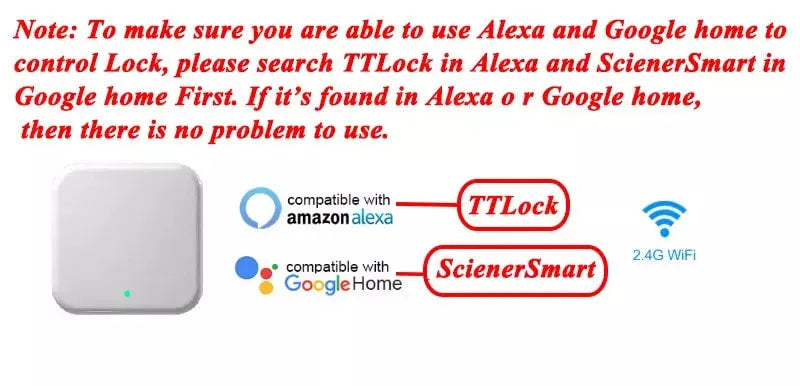

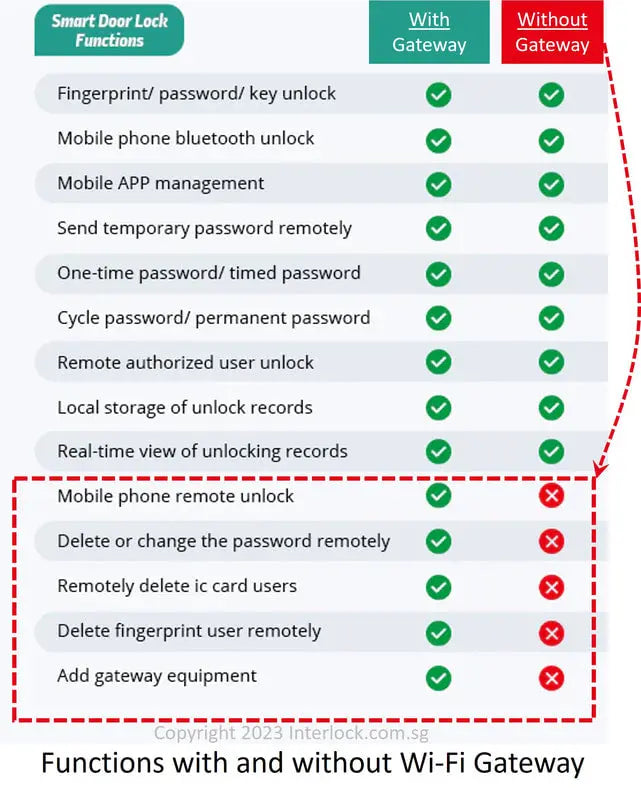

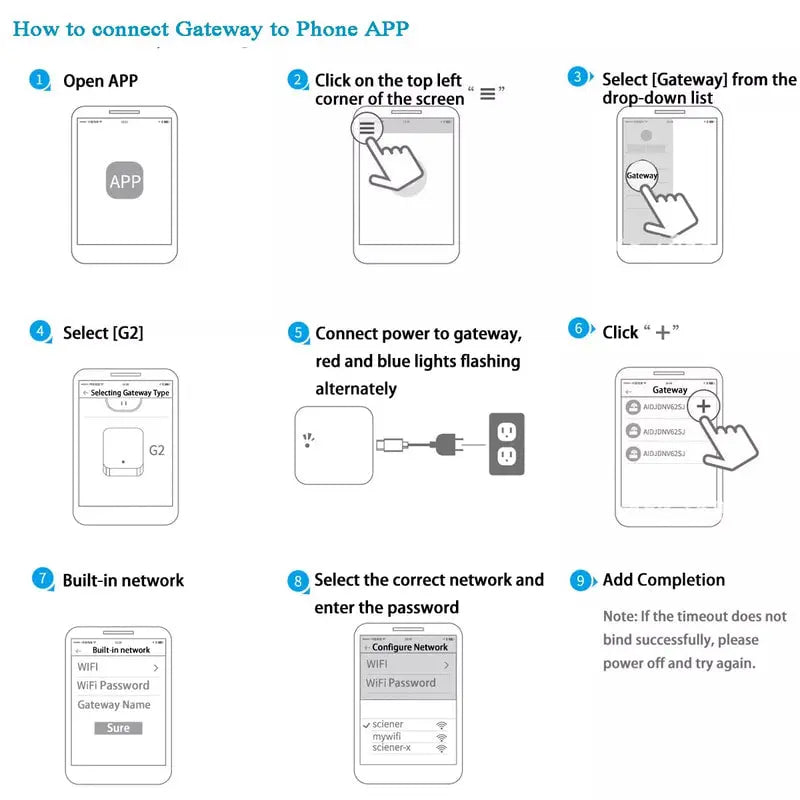

Bluetooth unlocking works via the app when you're nearby, and Wi-Fi unlocking (through the app, with an optional gateway add-on) extends that to anywhere with an internet connection — so you can let someone in even while you're at work or overseas. Fingerprint access is available on select models, alongside PIN code, card and mechanical key backup.
Auto-Lock and Normally Open Modes
Set the door to auto-lock automatically after entry or exit for everyday security, or switch to Normally Open mode during business hours so staff and customers can move freely without repeated unlocking — useful for offices, clinics or retail spaces as much as homes, where a door that needs re-unlocking every few minutes becomes a genuine daily friction point.
Access Codes & Alerts

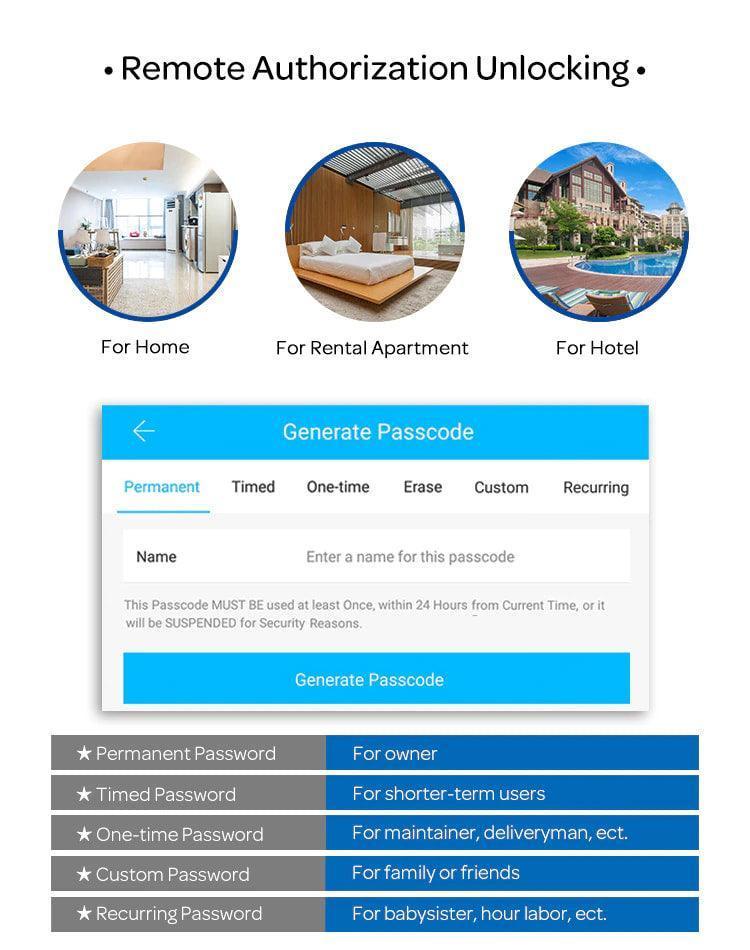

One-time, scheduled and recurring PIN codes cover guests, cleaners and deliveries, each expiring exactly when intended rather than needing to be manually revoked, with an intrusion alarm and English/Chinese voice guidance built in.

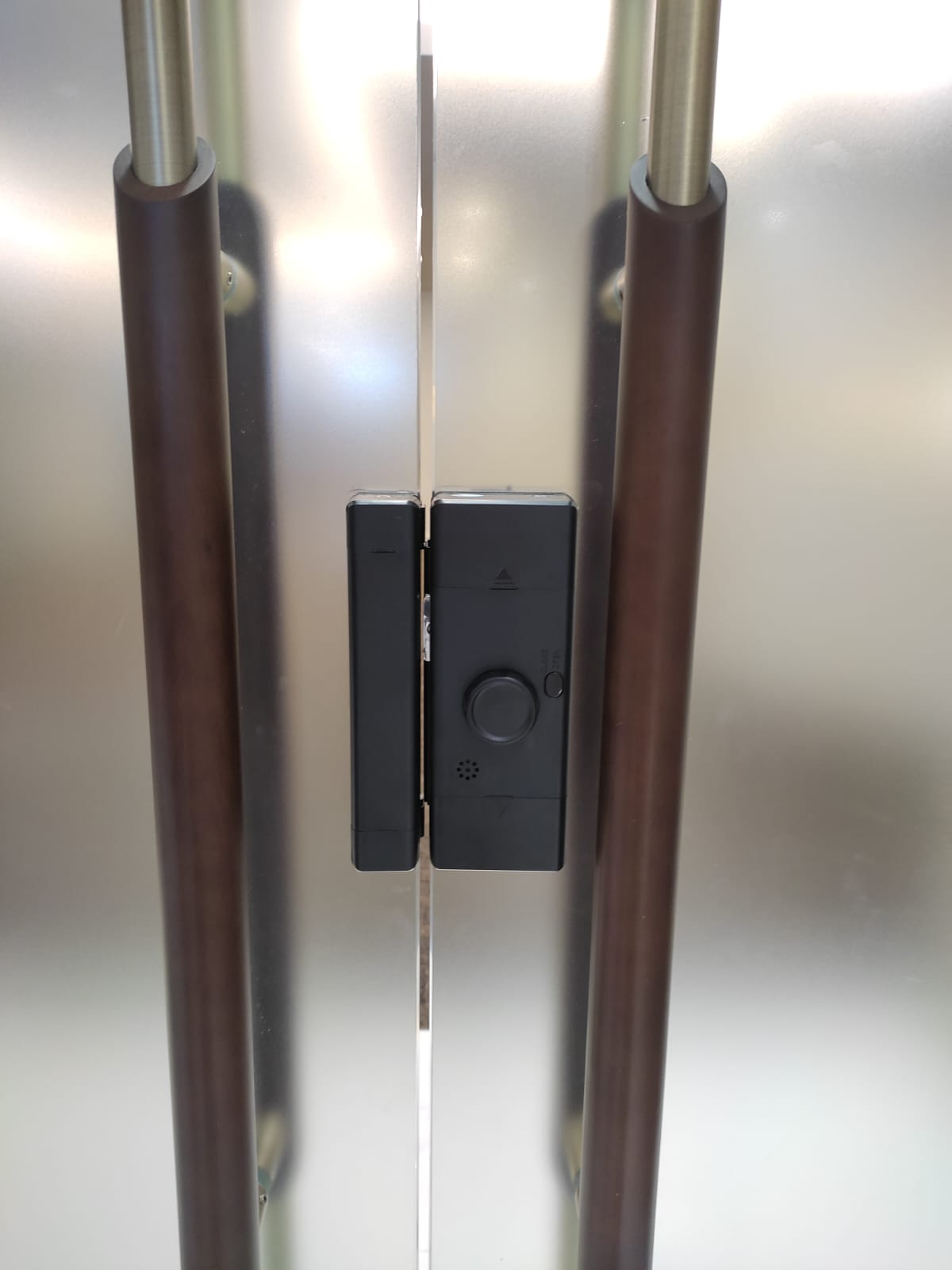

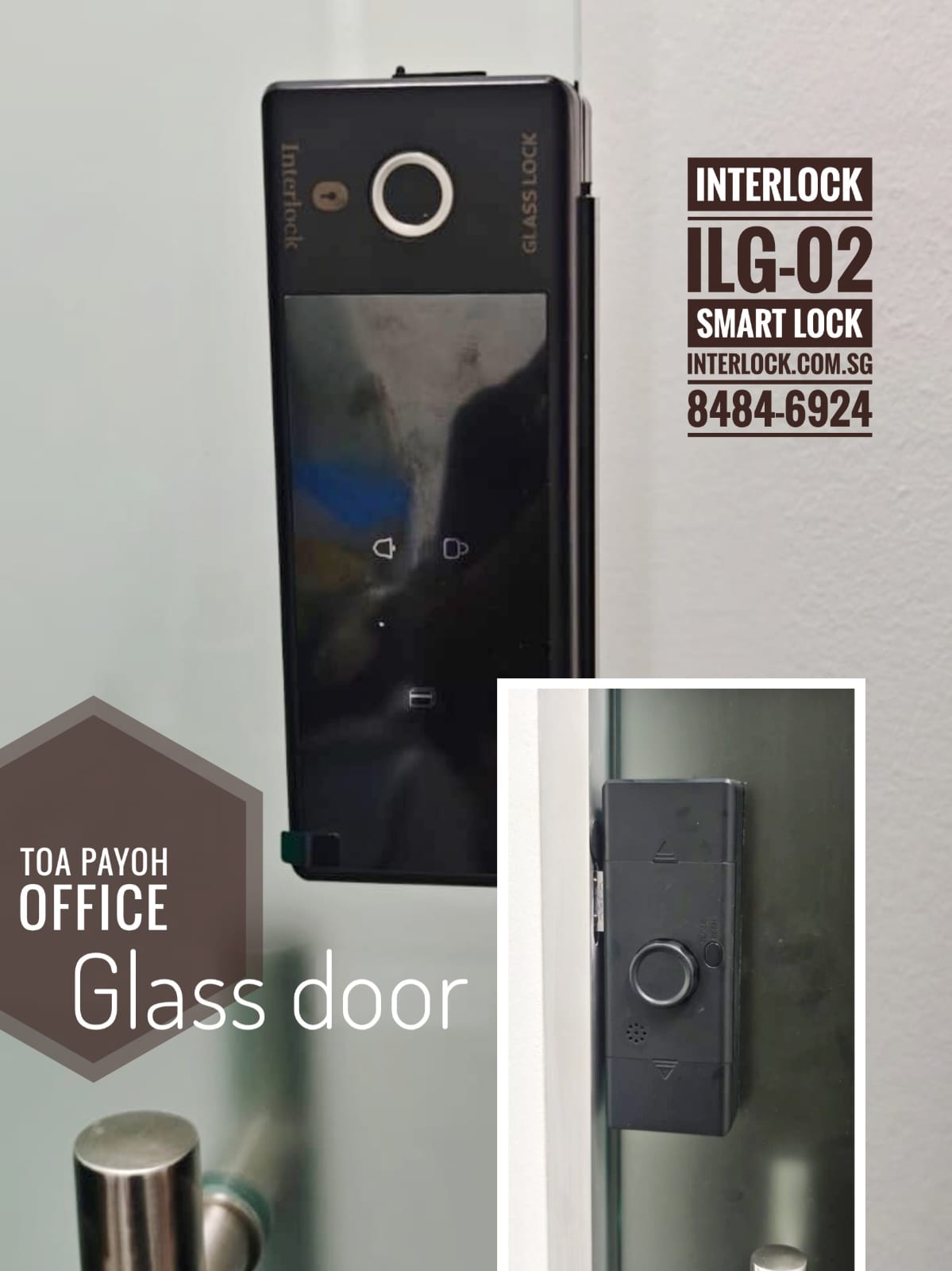

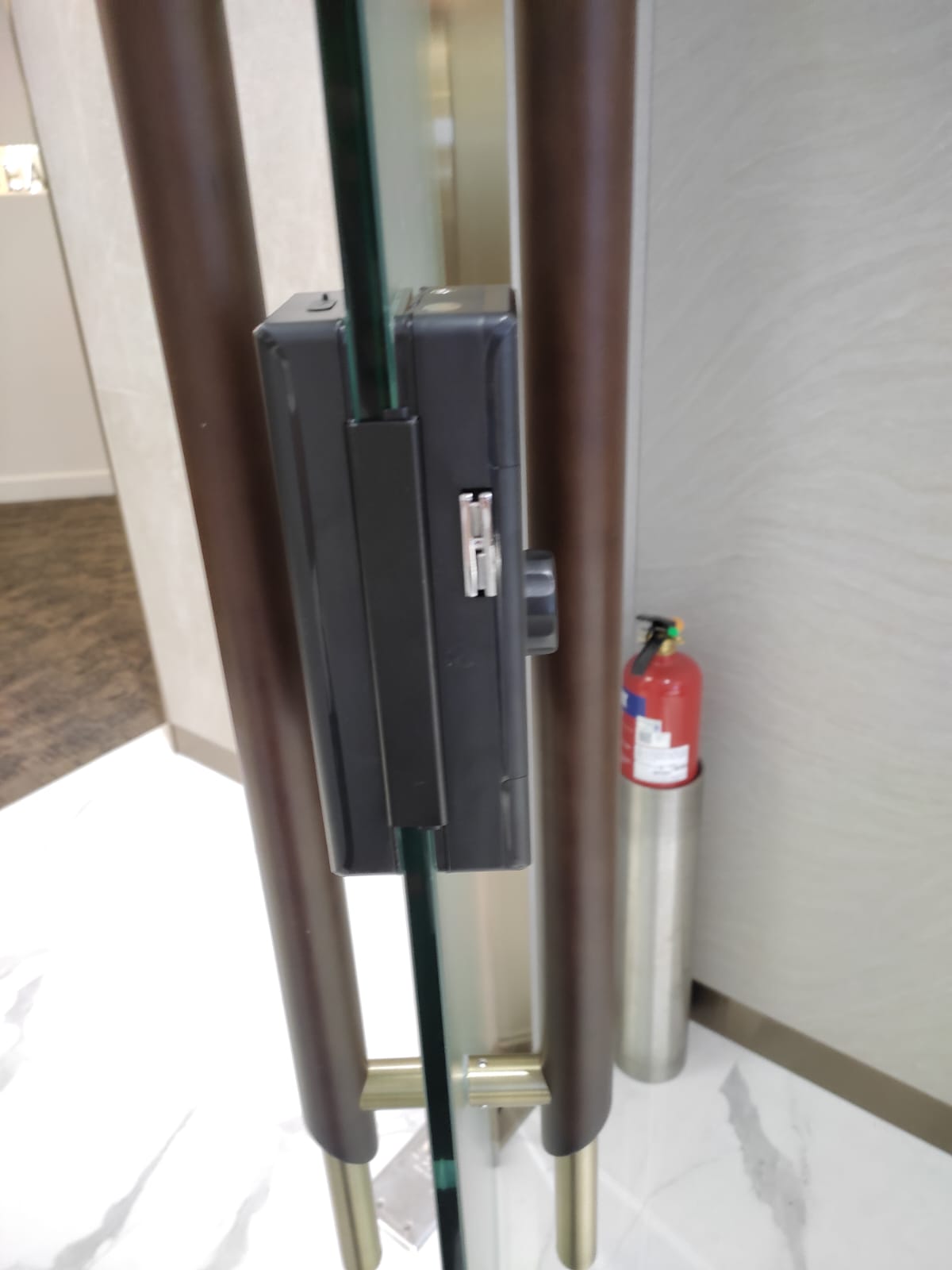

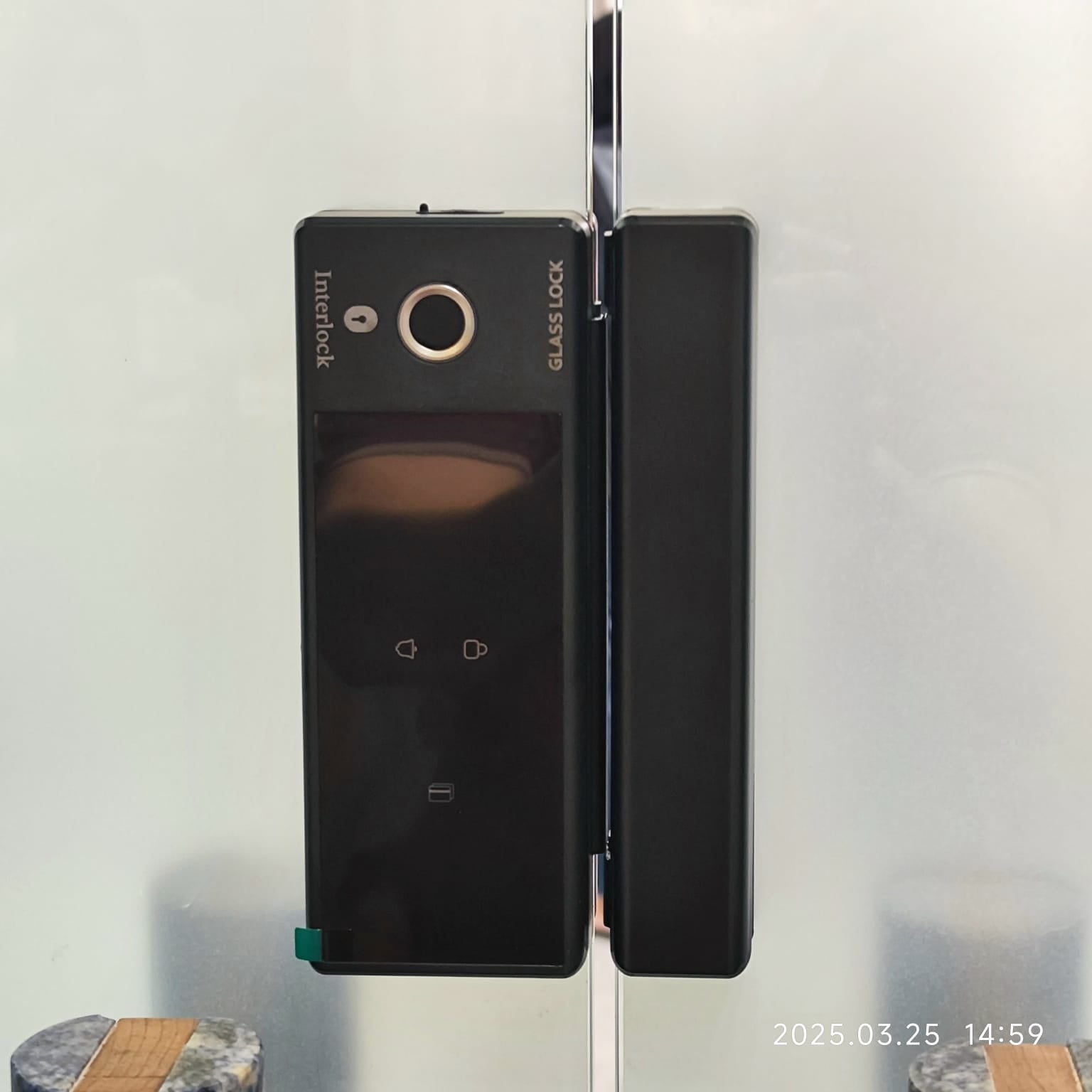

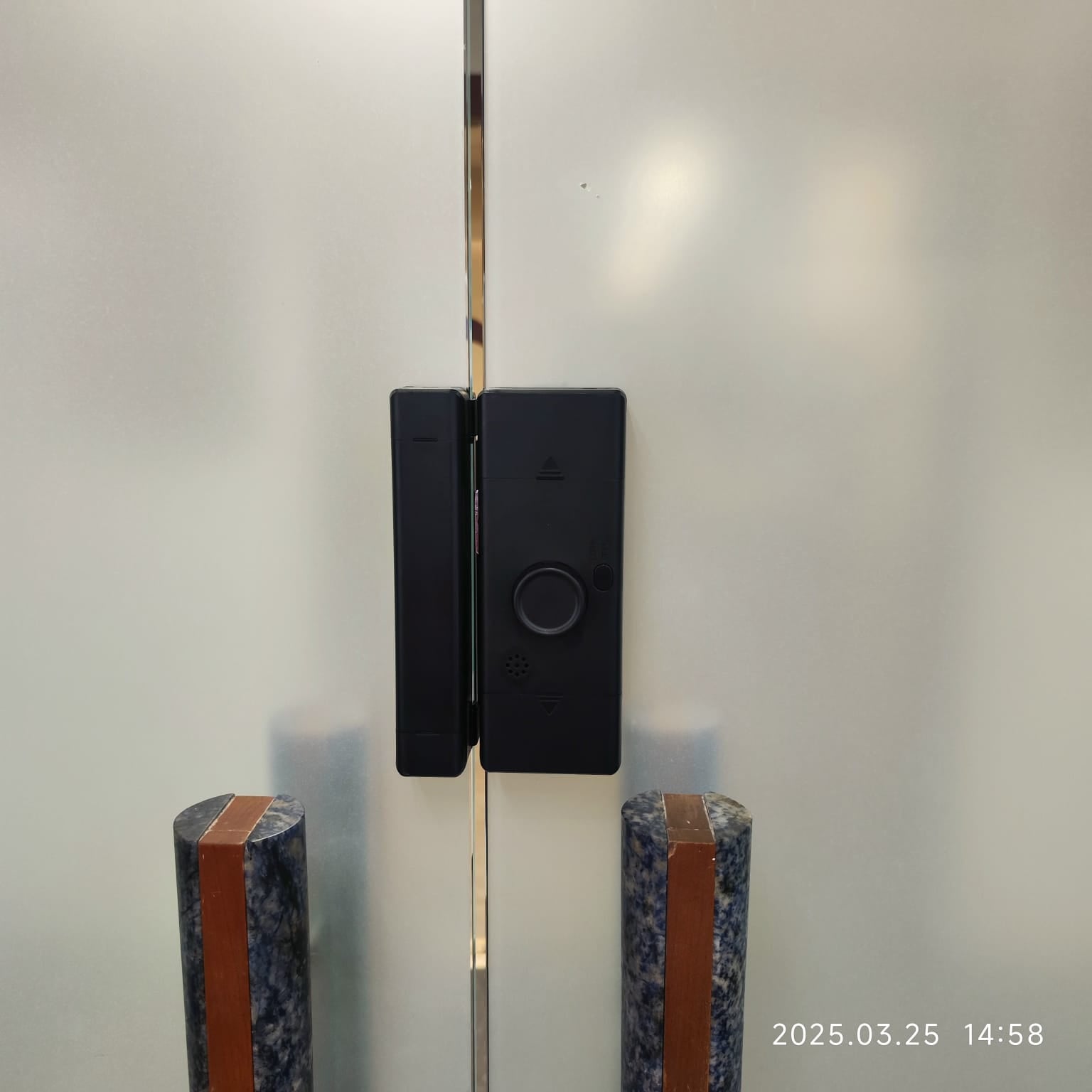

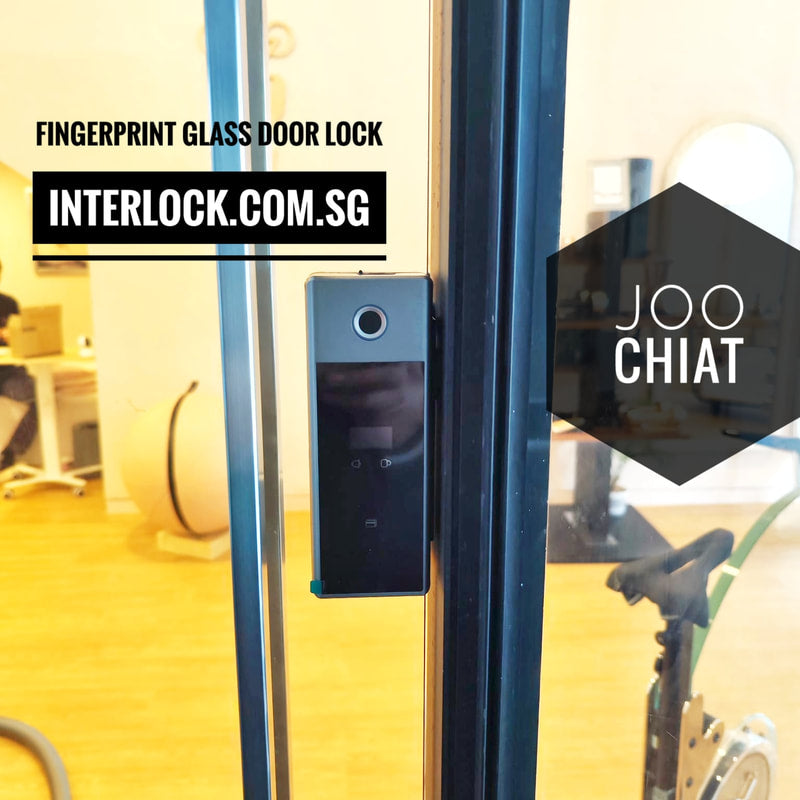

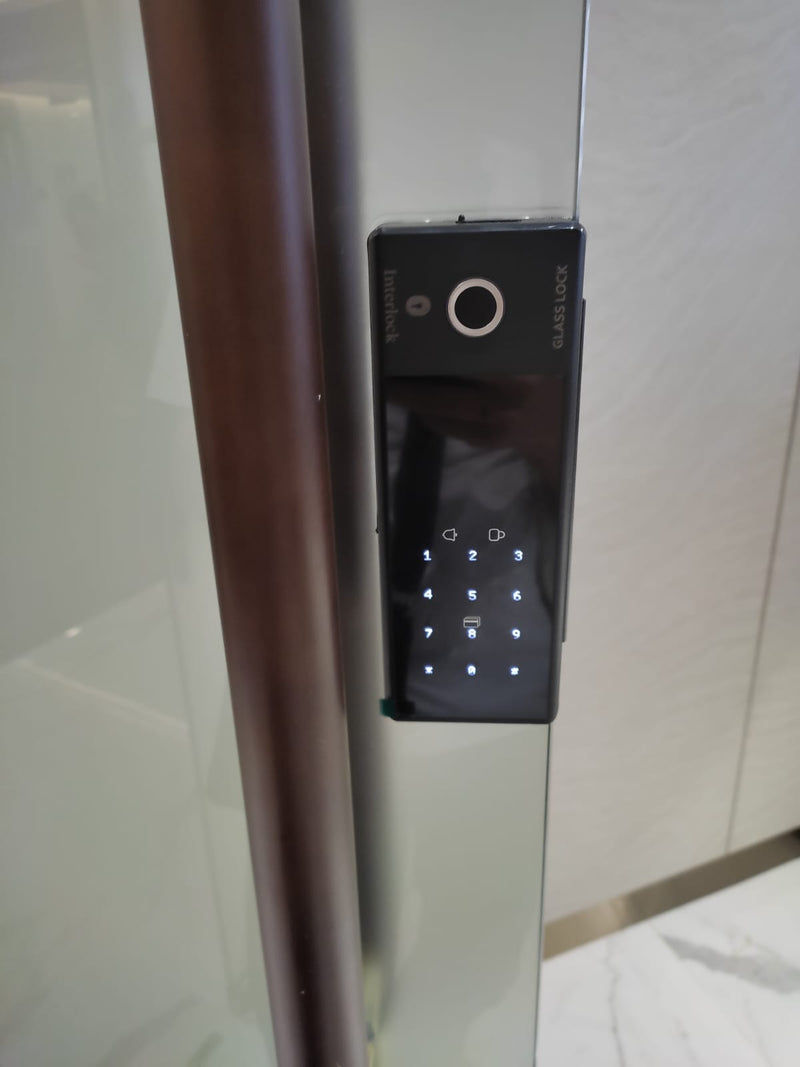

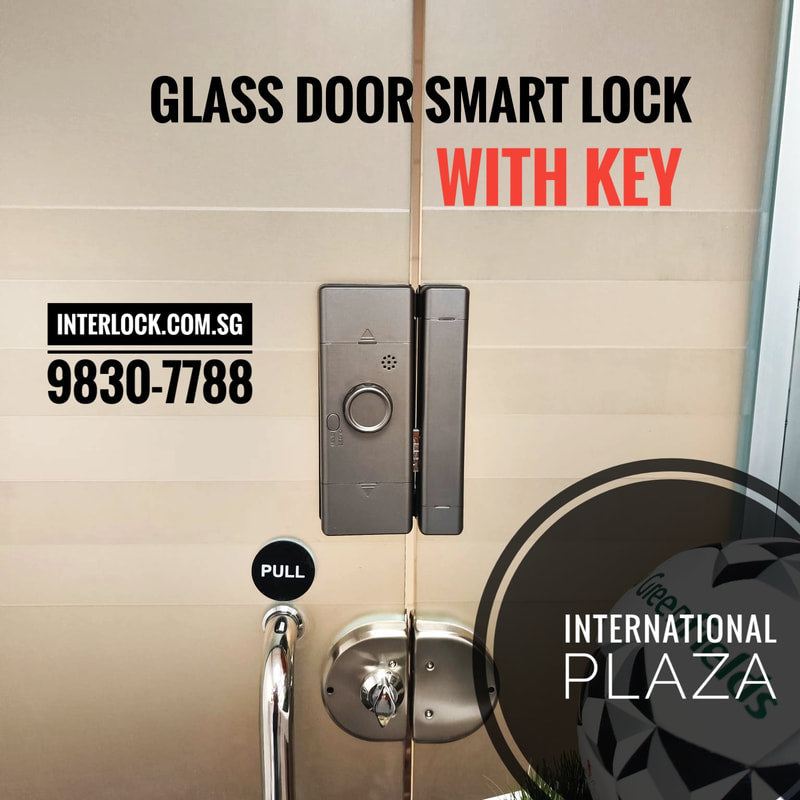

Real installation photos from our customers.

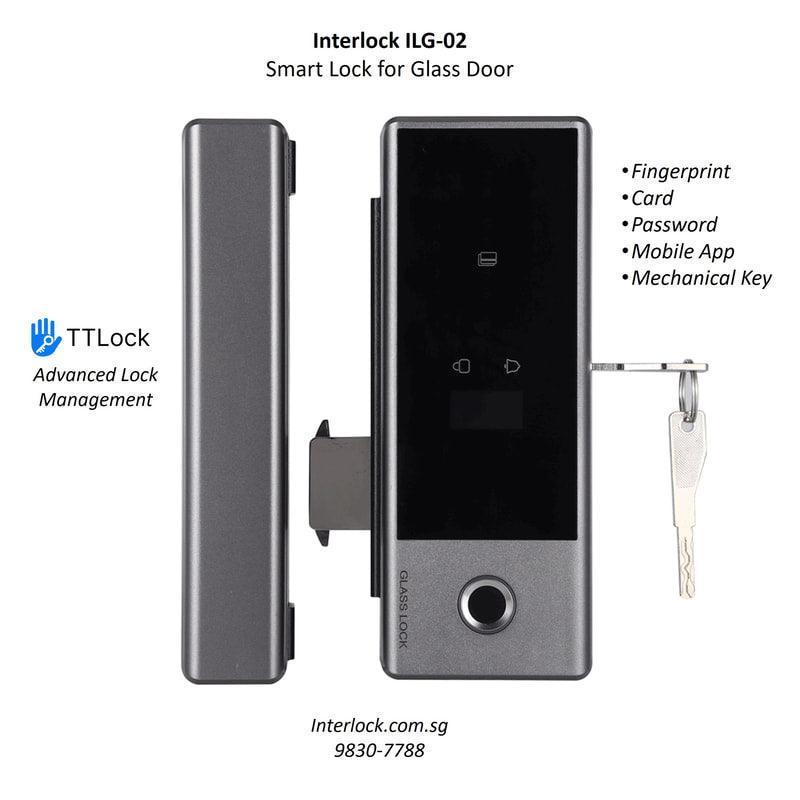

| Model | Interlock ILG-02 (TTLock version) |
|---|---|
| Lock Type | Rim (Smart Lock for Glass Door) |
| Unlocking Methods | Fingerprint, PIN Code, RFID Card, Temporary Password, Mechanical Key (no key on frameless glass installs) |

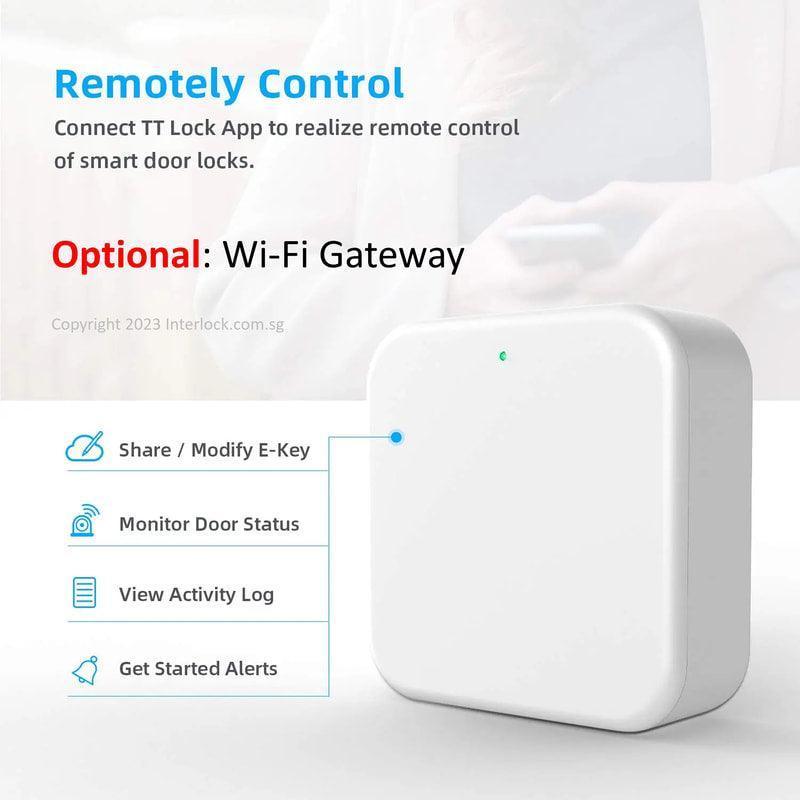

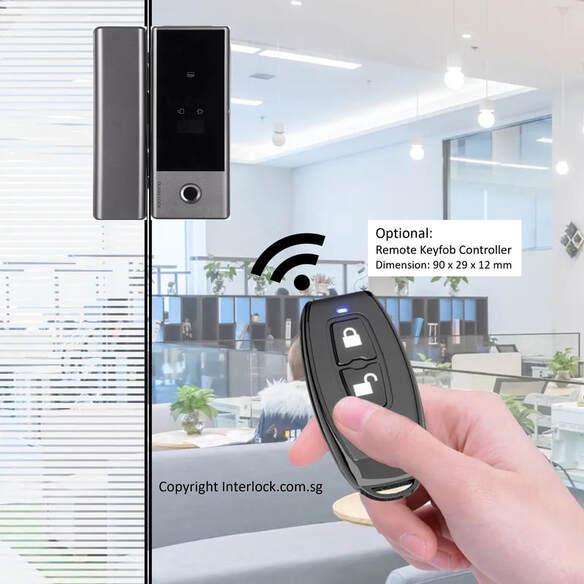

| Connectivity | Bluetooth (built-in, TTLock app control). Optional add-ons (sold separately): Bluetooth mini-program, Bluetooth attendance mode, RF Remote control, Wi-Fi remote unlocking via gateway |

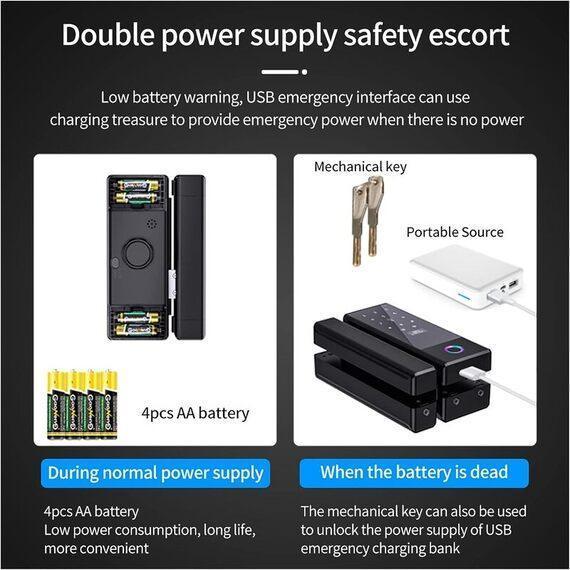

| Power Source | 4x AA (1.5V) alkaline dry batteries; USB Type-C emergency power |
| Static Power Consumption | <= 120uA |

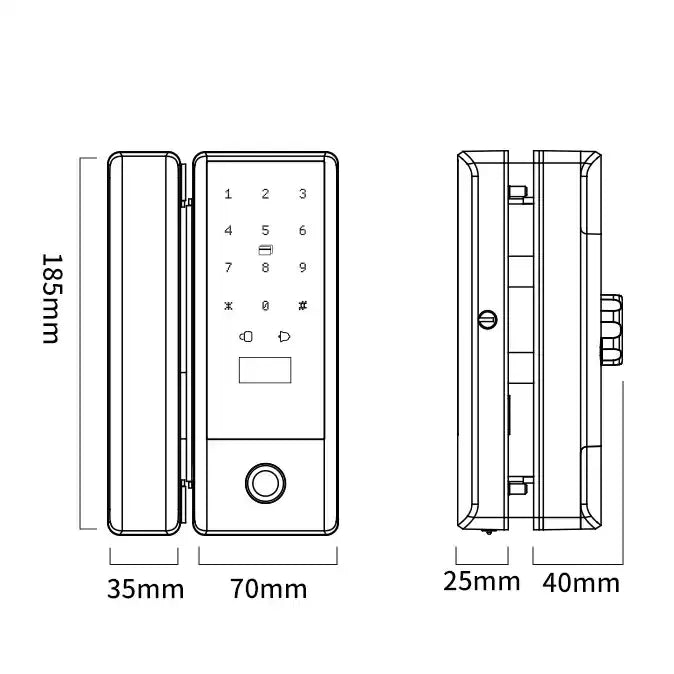

| Dimensions | Height: 185mm. Front assembly width: 70mm (keypad body) + 35mm (indoor clip); Rear assembly depth: 40mm + 25mm sections |
| Color | Matte Black, Space Gray, Champagne Gold |
| Product Weight | About 1.25kg |
| Applicable Door Type | Glass door, aluminum framed door, wooden door, sliding door |
| Door Type Specification | Door gap 6-8mm. Frameless glass door: 10-12mm thick glass. Framed door: 40-70mm frame thickness |
| Operating Temperature | -25C to +65C |
| Fingerprint Speed | <= 0.3 seconds |
| Recognition Accuracy | False accept rate <= 0.001%, false reject rate <= 1% |
| Card Type | M1, IC |
| Fingerprint Capacity | Up to 100 |
| Card + Password Capacity | Up to 1000 groups (combined) |
| Mechanical Key | 2 keys included |
| Passage Mode | Supports scheduled passage mode (auto-unlock during set times/days) and automatic or manual locking mode |
