Note: Product visuals are presented for illustrative purposes only and may vary slightly in colour, finish, proportions, and final installed appearance. For the most realistic representation, please refer to our Customer Gallery featuring actual installation photos.
Why it matters
Built for how you actually get home.

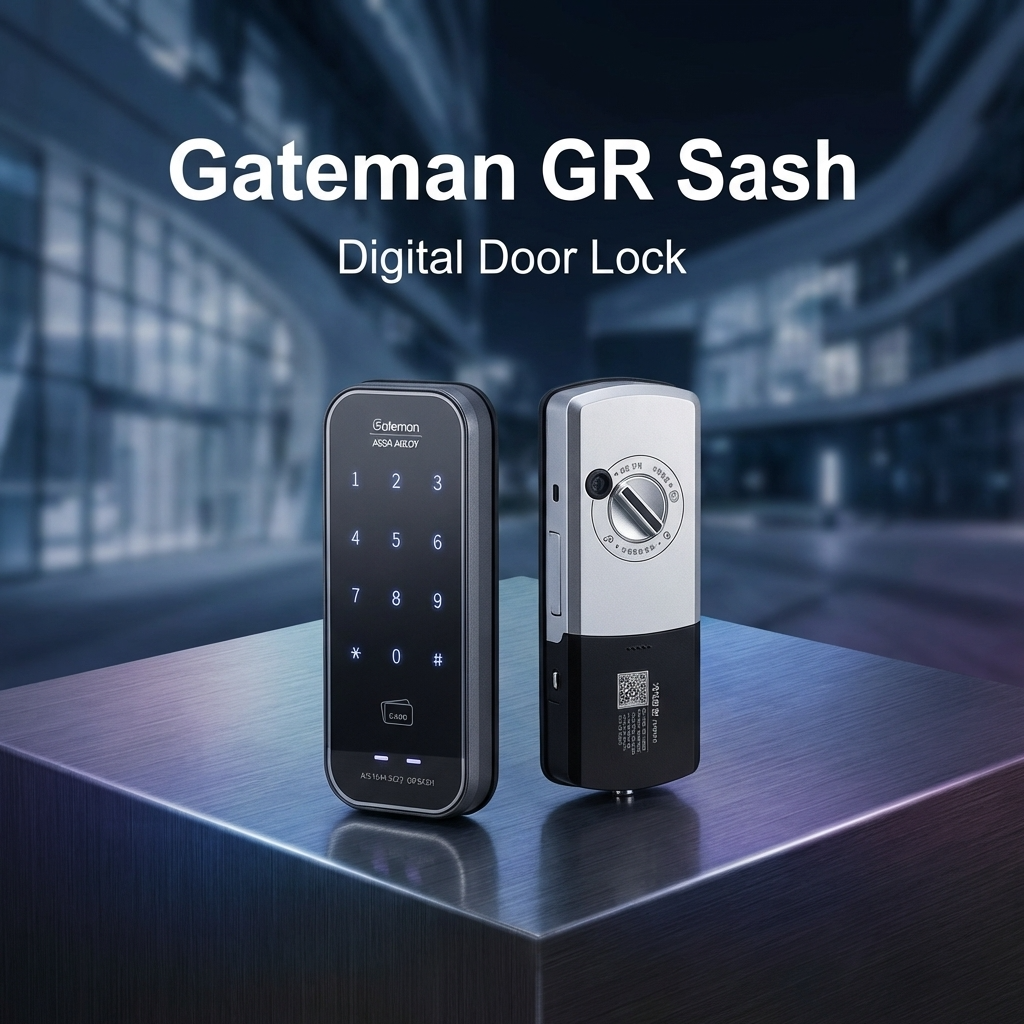

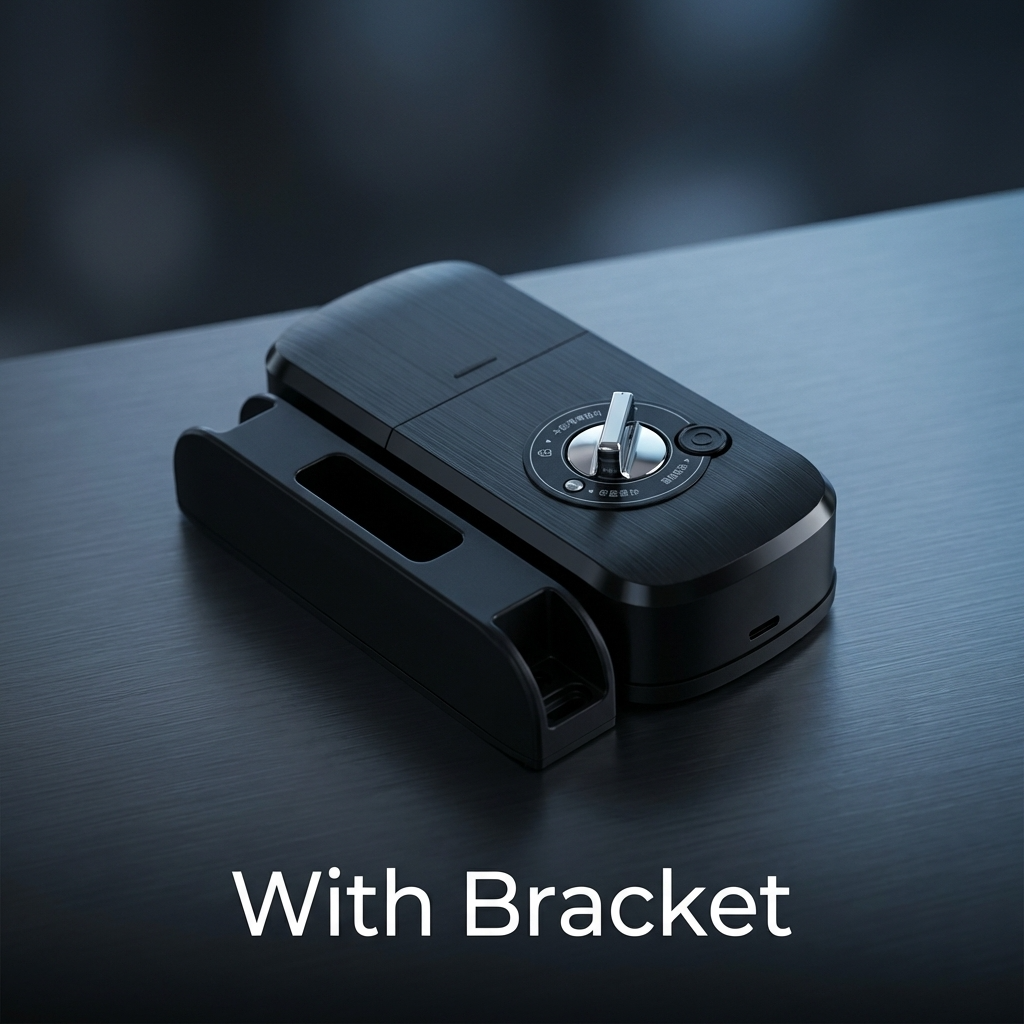

A Slim Lock for Narrow Door Frames
The Gateman GR Sash is designed specifically for narrow door frames where standard digital locks won't fit — sash doors, internal room doors, and aluminium-framed doors in homes, offices and rental units that a bulkier lock body simply can't be mounted on.
Ways to Unlock
PIN and RFID keyless access, kept deliberately simple with no unnecessary complexity layered on top — a lock built to solve one narrow-frame problem well rather than trying to do everything.
Security & Power
An auto-lock function, intrusion and tamper alarm, and low battery alert system come standard, along with emergency power support if the batteries run low.

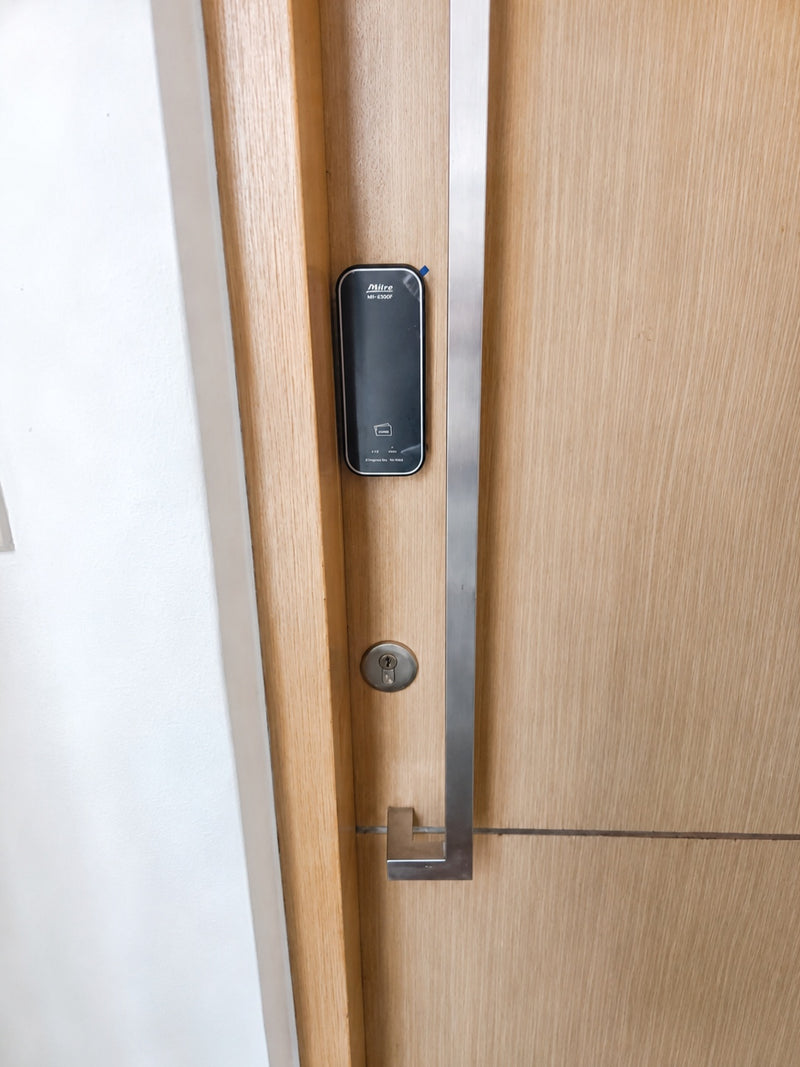

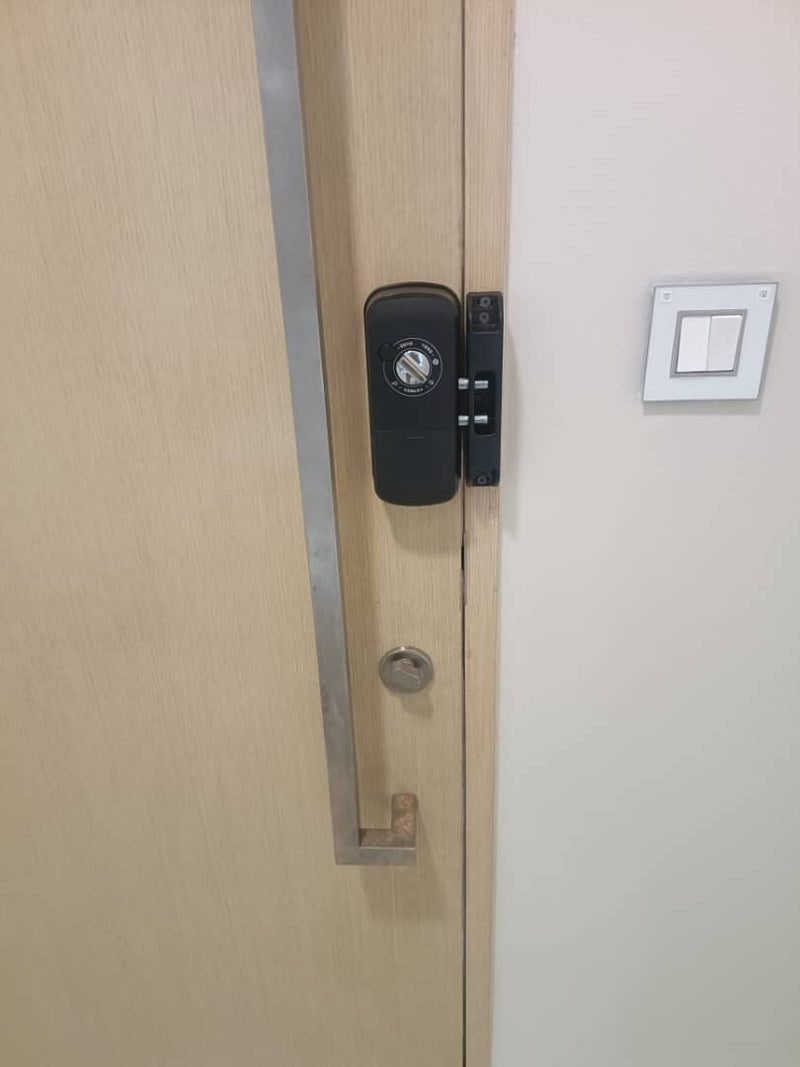

Real installation photos from our customers.

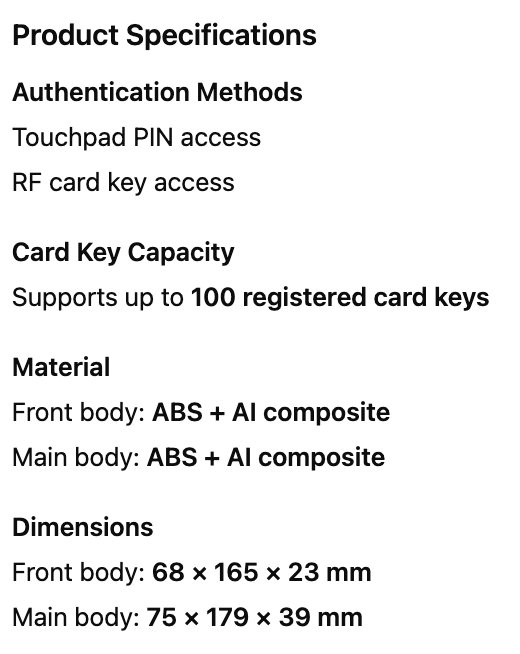

| Model | Gateman GR-Sash |
|---|---|
| Lock Type | Rim - compact vertical design for narrow door frames |
| Unlocking Methods | PIN Code (1 shared password, 4-12 digits), RFID Card |
| Connectivity | None - fully offline, no app/Bluetooth/Wi-Fi |
| Power Source | 4x 1.5V AA (LR6) alkaline batteries; DC 6V rated; 9V external emergency power terminal |
| Battery Life | Up to 1 year (based on ~10 uses/day) |
| Warranty | 1 Year Parts and On-Site Warranty |
| Dimensions | Front (exterior) body: 68mm (W) x 165mm (H) x 23mm (D); Main (interior) body: 75mm (W) x 179mm (H) x 39mm (D) |
| Material | Front body: ABS + Aluminum; Main body: ABS + Aluminum |
| Card Key Capacity | Up to 100 registered card keys |

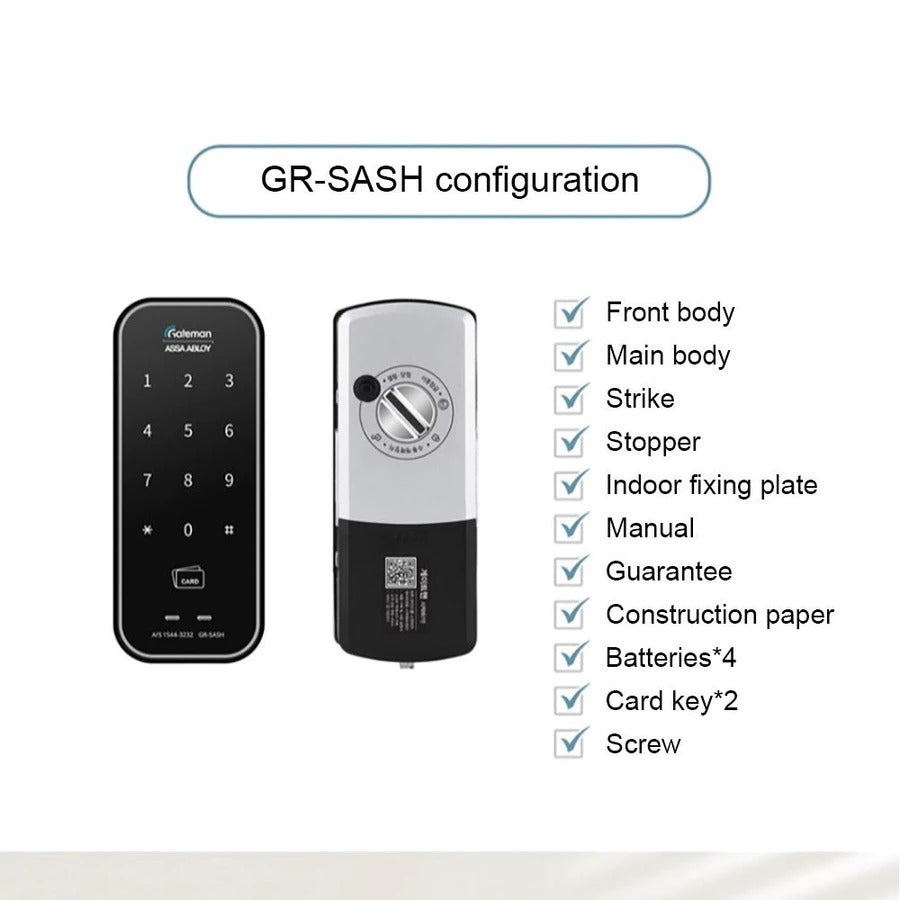

| What is in the Box | Front Body, Main Body, Strike, Stopper, Indoor Fixing Plate, Manual, Guarantee Card, Construction Paper, Batteries x4, Card Key x2, Screw |
| Suitable Door Types | Wooden Door |
| Security Features | Smart etiquette silent unlock, anti-peep fake-number entry, internal/external forced-lock mode, auto-lock (within 1 second of closing) or manual lock, intrusion and high-temperature alarms, 5-minute lockout after 5 failed attempts |
