Clip-Mounted Security for Glass Doors
The Gateman GR Clip is purpose-built for glass and sash doors, using clip-type mounting hardware rather than a full mortise cut-out — a practical option for retrofitting existing glass doors in offices, clinics or retail units where cutting into the glass isn't an option.
Ways to Unlock
Keypad PIN and card key entry are both supported, so you can choose whichever access method suits the space and the people using it.
Design
An anti-fingerprint keypad surface keeps passcodes discreet by resisting visible smudges that could otherwise hint at which digits are used, and the compact, modern design is built to suit contemporary glass-door environments. Made by Gateman, a leading Korean digital lock brand.

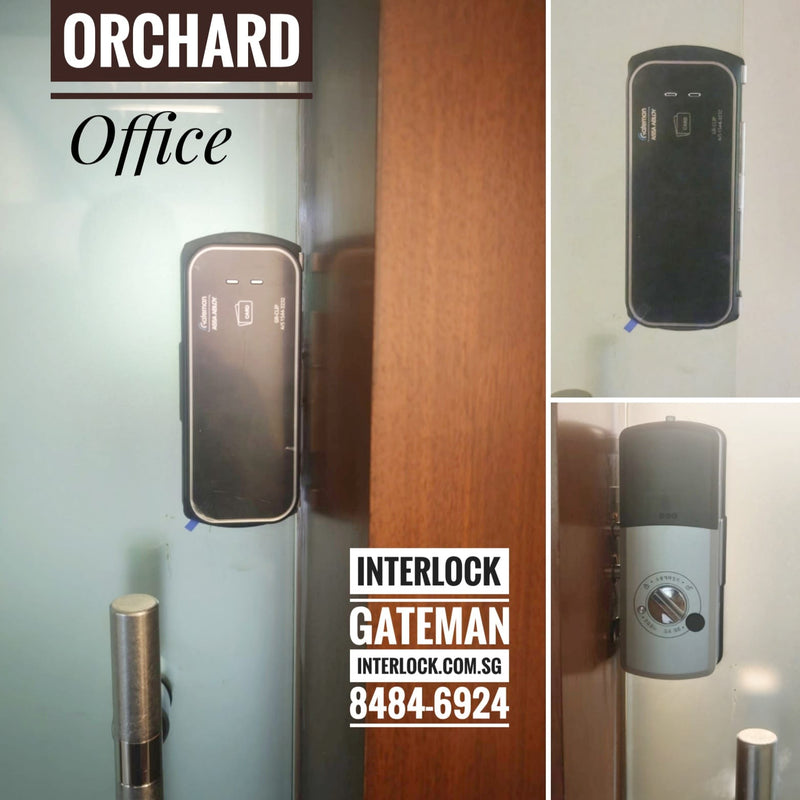

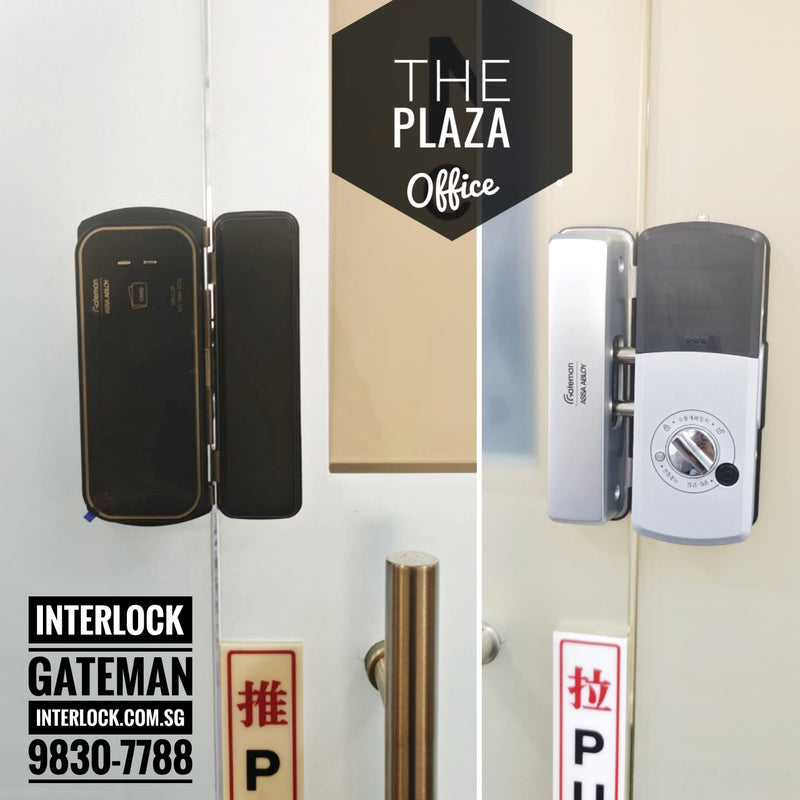

Real installation photos from our customers.
| Model | Gateman GR-Clip |
|---|---|
| Lock Type | Rim - clip-on, no-drill installation for glass doors |
| Unlocking Methods | PIN Code (1 shared password, 4-12 digits), RFID Card |
| Connectivity | None - fully offline, no app/Bluetooth/Wi-Fi |
| Power Source | 4x 1.5V AA (LR6) alkaline batteries; DC 6V rated; 9V external emergency power terminal |
| Battery Life | Up to 1 year (based on ~10 uses/day) |
| Warranty | 1 Year Parts and On-Site Warranty |
| Material | Front body: ABS + Aluminum; Main body: ABS + Aluminum |
| Dimensions | Front (exterior) body: 68mm (W) x 165mm (H) x 23mm (D); Main (interior) body: 75mm (W) x 179mm (H) x 39mm (D) |
| Card Key Capacity | Up to 100 registered card keys |
| Suitable Door Types | Glass Door |
| Security Features | Smart etiquette silent unlock, anti-peep fake-number entry, internal/external forced-lock mode, auto-lock (within 1 second of closing) or manual lock, intrusion and high-temperature alarms, 5-minute lockout after 5 failed attempts |
Frequently Asked Questions
Have questions? We're here to help you.
The Gateman GR Clip is designed for glass and sash door applications. It is commonly used on glass office doors, glass partitions, and other installations that support clip-type glass hardware.
The lock uses a clip-type mounting structure that attaches securely to compatible glass panels. This design reduces the need for extensive drilling or cutting compared to traditional mortise lock installations.
The Gateman GR Clip supports keypad PIN access and card key authentication, offering simple and flexible keyless entry for everyday use.
Yes. Its design is especially well-suited for offices, clinics, studios, and retail environments where glass doors are common and reliable keyless access control is required.
No. The Gateman GR Clip features an anti-fingerprint surface designed to minimise visible smudges and fingerprint marks, helping the lock maintain a clean and professional appearance.
Yes. The lock is commonly used together with compatible accessories such as GR-Frame, GR-Sash, and other Gateman glass door components to support different glass door configurations.
