Zigbang三星DH540电子锁是一款送货上门即用的插芯锁，支持密码和刷卡两种开锁方式，具备自动/手动锁定模式以及防盗报警功能。它还具备低电量提示和紧急外接终端，是一款经济实惠且易于使用的电子门禁解决方案。
Real installation photos from our customers.

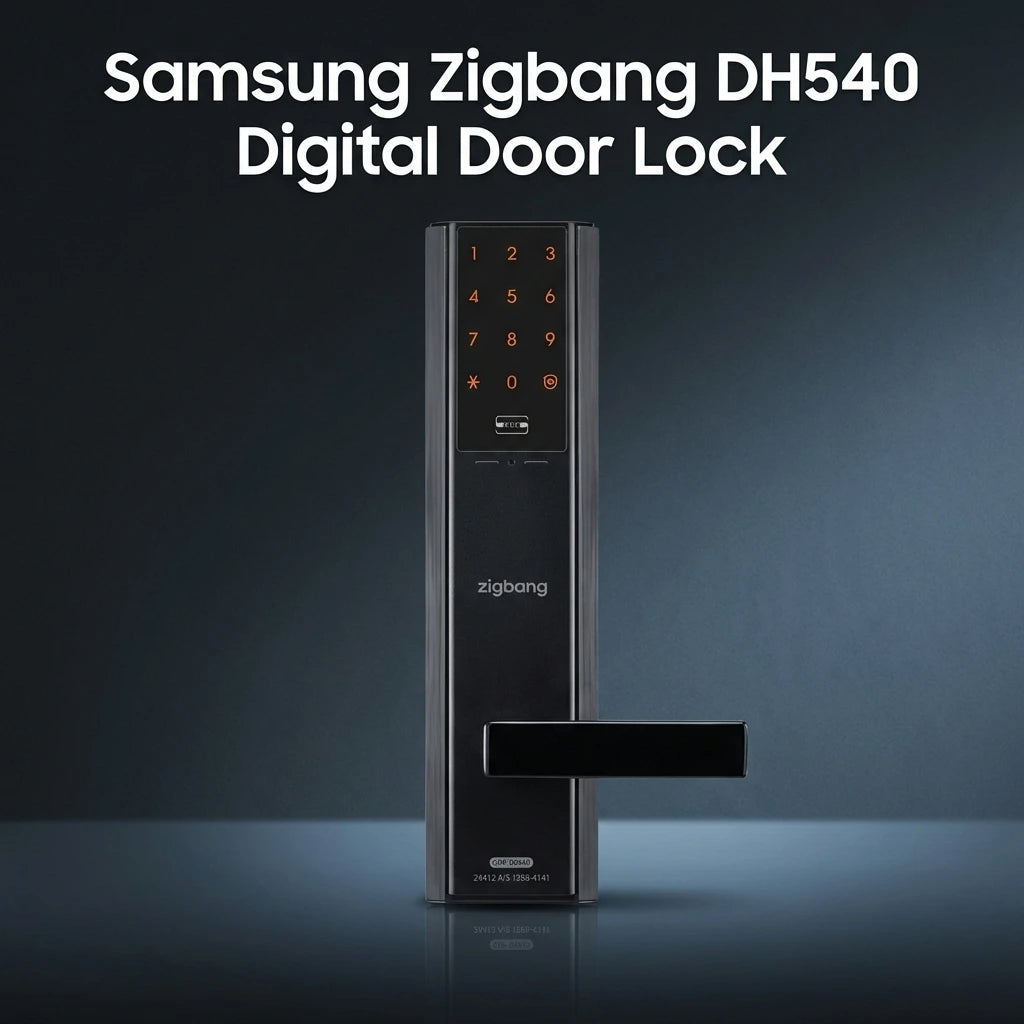

| Model | Samsung Zigbang SHP-DH540 |
|---|---|
| Lock Type | Mortise |
| Unlocking Methods | PIN Code (1 password), RFID Card/Tag (up to 20), optional RF Remote Controller (sold separately) |
| Connectivity | None - fully offline, no app/Bluetooth/Wi-Fi. Optional RF remote controller accessory operates up to 20m, not app-based |
| Power Source | 8x AA alkaline batteries (minimum 4x); 9V emergency battery via exterior terminals |
| Battery Life | Up to 10 months (based on ~10 entries/day, 8x AA) |
| Warranty | 1 Year Parts and On-Site Warranty |
| Dimensions | Front: 80mm (W) x 320mm (H) x 20mm (D), up to 70mm handle depth; Rear: 80mm (W) x 290mm (H) x 35mm (D), 85mm handle |
| Card Capacity | Up to 100 RFID cards/tags |
| Password Capacity | 1 password |
| Features | Automatic/manual locking toggle, Magic Number anti-peep entry (default on), Double Authentication (PIN + card, default off), adjustable locking delay (1-9 seconds), adjustable volume (Mute/Low/High), intrusion alarm, low battery indicator (LED + melody), double-lock privacy mode |
| Suitable Door Types | Wooden Door |
| Brand Note | Formerly a Samsung-branded lock, now sold under the Zigbang brand |
