Interlock Mercury GD1 是一款专为玻璃门设计的尖端数字锁。它拥有六种灵活多样的解锁方式，包括人脸识别、指纹识别、刷卡、密码、App 控制和机械钥匙，即使在紧急情况下，GD1 也能确保您始终掌控一切。其创新设计还包括外置机械钥匙选项和 USB-C 紧急充电端口，使其成为现代家居和办公场所的可靠之选。Mercury GD1 是私人活动场所、办公室或日常使用的理想之选，是您理想的智能锁解决方案。
Real installation photos from our customers.

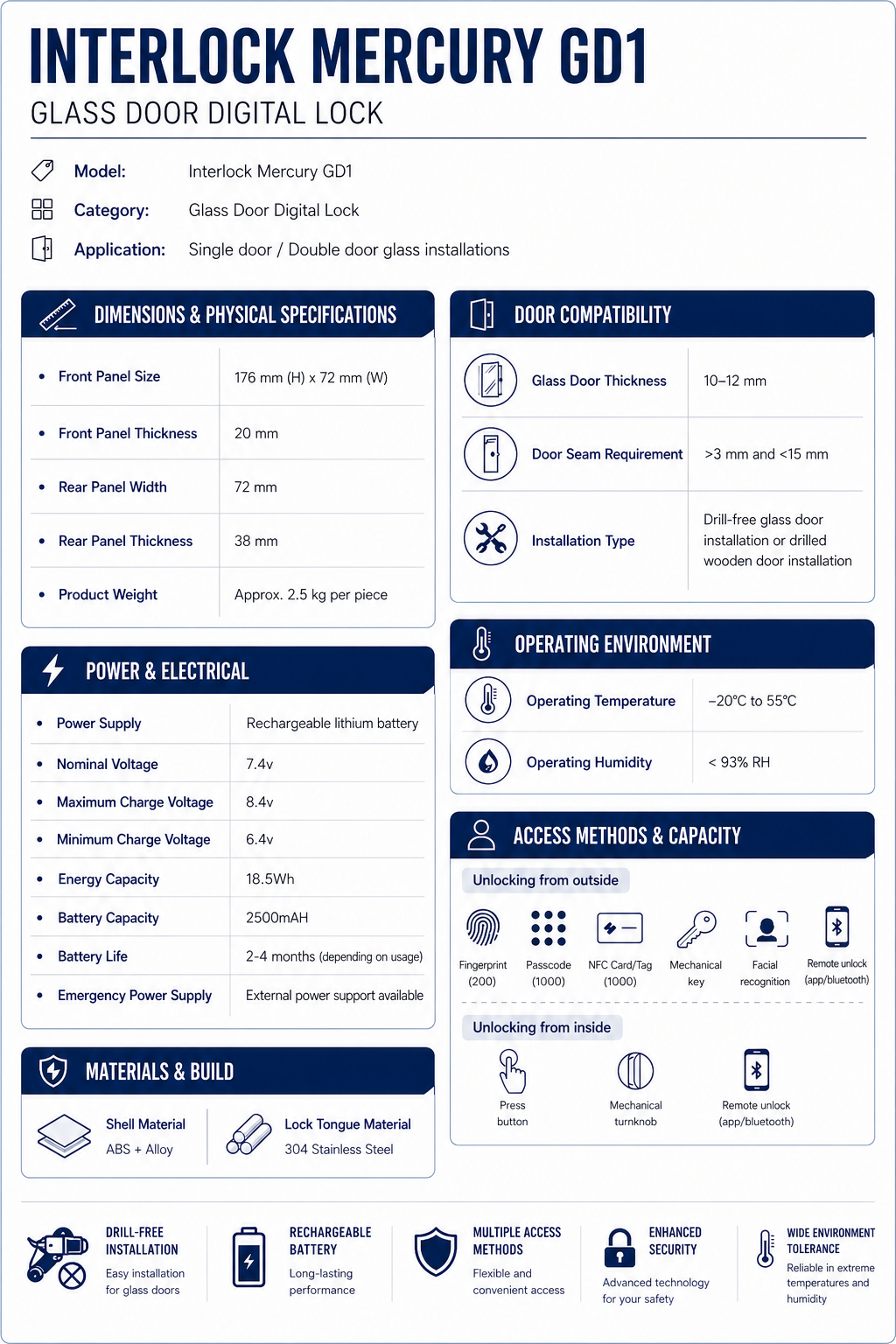

| Model | Interlock Mercury GD1 |
|---|---|
| Lock Type | Rim (Glass Door Digital Lock) |
| Unlocking Methods | Outside: Fingerprint, Card+PIN, Facial ID, Mechanical Key. Inside: Press button, Mechanical turnknob, App/Bluetooth remote unlock |
| Connectivity | Bluetooth (app remote unlock via TT Lock app) |
| Power Source | Rechargeable lithium battery, 7.4V nominal (6.4V-8.4V), 2500mAh / 18.5Wh; 5V/2A USB Type-C emergency power |
| Battery Life | Up to 4 months under typical use; we recommend recharging monthly |
| Warranty | 1 year (onsite, product & battery warranty) |
| Dimensions | Front Panel: 176mm (H) x 72mm (W) x 20mm (thickness); Rear Panel: 72mm (W) x 38mm (thickness) |
| Material | Shell: ABS + Alloy. Lock Tongue: 304 Stainless Steel |
| Product Weight | Approx. 2.5kg per piece |
| Door Seam Requirement | Greater than 3mm and less than 15mm |
| Installation Type | Drill-free glass door installation, or drilled wooden door installation |
| Operating Temperature | -20C to 55C |
| Operating Humidity | < 93% RH |
| Fingerprint Capacity | Up to 100 |
| Card + PIN Capacity | Up to 900 (combined) |
| Facial ID Capacity | Up to 50 |
| Mechanical Key | 2 keys included |
Frequently Asked Questions
Have questions? We're here to help you.
The Interlock Mercury GD1 is best suited for glass doors in homes, offices, private rooms, clinics, retail spaces, event venues, and selected commercial spaces. It is designed for users who need a digital lock specifically made for glass door applications.
The Mercury GD1 is designed specifically for glass doors, unlike standard digital locks that are usually made for wooden swing doors. It supports multiple access methods while maintaining a sleek design that suits modern glass door setups.
Yes. The Mercury GD1 is designed for selected glass doors, including suitable framed and frameless glass door setups. Final compatibility depends on the glass door type, thickness, frame design, and installation clearance.
Not every glass door is suitable. Compatibility depends on the glass thickness, door structure, frame condition, lock area, door alignment, and available clearance. A photo-based compatibility check is recommended before confirming installation.
No. The Mercury GD1 is designed for glass doors. For wooden doors, metal gates, or sliding doors, a dedicated Mercury door, gate, or sliding lock model would be more suitable.
From the outside, the Mercury GD1 supports fingerprint, passcode, NFC card or tag, mechanical key, facial recognition, and app or Bluetooth unlock.
From the inside, the Mercury GD1 supports the open button, mechanical turn knob, and app or Bluetooth unlock.
Yes. The Mercury GD1 supports fingerprint unlocking, allowing users to unlock the glass door quickly without using keys.
Yes. The Mercury GD1 supports facial recognition, allowing users to unlock with face access where supported and configured.
Yes. The Mercury GD1 supports PIN code access, allowing users to unlock with a passcode. This is useful for family members, staff, guests, or shared-space users.
Yes. Through the app, the Mercury GD1 can support periodic PIN codes and temporary unlock periods. This is useful for visitors, cleaners, contractors, helpers, event venues, offices, and short-term access needs.
Yes. The Mercury GD1 supports NFC card or tag access. This is useful for staff, children, elderly users, or anyone who prefers tap-to-unlock access.
Yes. The Mercury GD1 supports app control through Bluetooth. You can use the app to manage access, check logs, and create selected PIN code settings where supported.
Remote unlocking requires the optional WiFi gateway add-on. Without the WiFi gateway, app control is mainly Bluetooth-based and works when you are within Bluetooth range.
A WiFi gateway is not required for basic lock use. However, if you want remote unlocking or cloud-based remote management when you are away from the property, the WiFi gateway is required as an add-on.
Yes. The Mercury GD1 supports access logs through the app, allowing you to monitor entry history and review who unlocked the glass door, depending on the app setup.
Yes. The Mercury GD1 can support attendance-related functions through the app ecosystem where configured. This may be useful for offices, staff rooms, clinics, studios, or selected commercial spaces.
Yes. The Mercury GD1 includes an in-built doorbell, allowing visitors to alert users at the glass door.
Yes. The Mercury GD1 includes external mechanical key access. This is useful as a backup method during emergencies, such as low battery, forgotten PIN, fingerprint issues, or app access problems.
If the battery is depleted, you can temporarily power the Mercury GD1 using a USB-C power bank through the emergency charging port. You can also use the mechanical key as a backup access method.
Yes. The Mercury GD1 has a USB-C emergency charging port. If the battery is depleted, you can connect a portable power bank temporarily to power the lock and unlock the glass door.
Yes. The Mercury GD1 includes 2 mechanical keys for emergency or backup access.
Yes. The Mercury GD1 includes 2 tags, which can be used for convenient tap-to-unlock access.
Yes. The Mercury GD1 can be suitable for elderly users because it supports multiple access methods, including fingerprint, PIN code, NFC tag, mechanical key, facial recognition, and app or Bluetooth unlock. NFC tags may be especially simple for users who do not want to remember PIN codes.
Yes. Children can use suitable access methods such as NFC tags, PIN codes, fingerprint, or facial recognition depending on their age and family preference.
Yes. The Mercury GD1 can be suitable for offices, clinics, studios, retail spaces, private rooms, event venues, and selected commercial areas with compatible glass doors.
Basic lock functions do not require a paid subscription. However, selected TTLock premium features such as advanced cloud management, web console functions, bulk export, long-term cloud data backup, and property management integrations may require paid access.
You should send clear photos of the front and back of the glass door, the side profile, the frame or frameless edge, the current lock area, the door alignment, and the area where the lock will latch. This helps our team check whether the GD1 can be installed safely and properly.
Yes. Installation is included for the Mercury GD1. Before installation is confirmed, our team will still need to check your glass door photos to make sure the glass type, frame design, lock area, door alignment, and clearance are suitable.
The Mercury GD1 comes with 1 year local warranty. Warranty coverage may depend on usage conditions, installation conditions, and whether the lock is used within the recommended environment.
The Mercury GD1 is suitable for users who need a digital lock for selected glass doors and want fingerprint, PIN code, NFC tag, mechanical key, facial recognition, app or Bluetooth access, temporary PIN codes, access logs, built-in doorbell, and USB-C emergency power support.
