Interlock ILG-02 智能锁为玻璃门提供无钥匙开启功能,无需钻孔或布线。借助其 TTlock 管理系统和可选的 Wi-Fi 网关,您可以轻松地通过手机管理和监控门锁。在特定时间和日期享受通行模式的便利,并可根据不同的人流量选择自动或手动锁定模式。
Real installation photos from our customers.

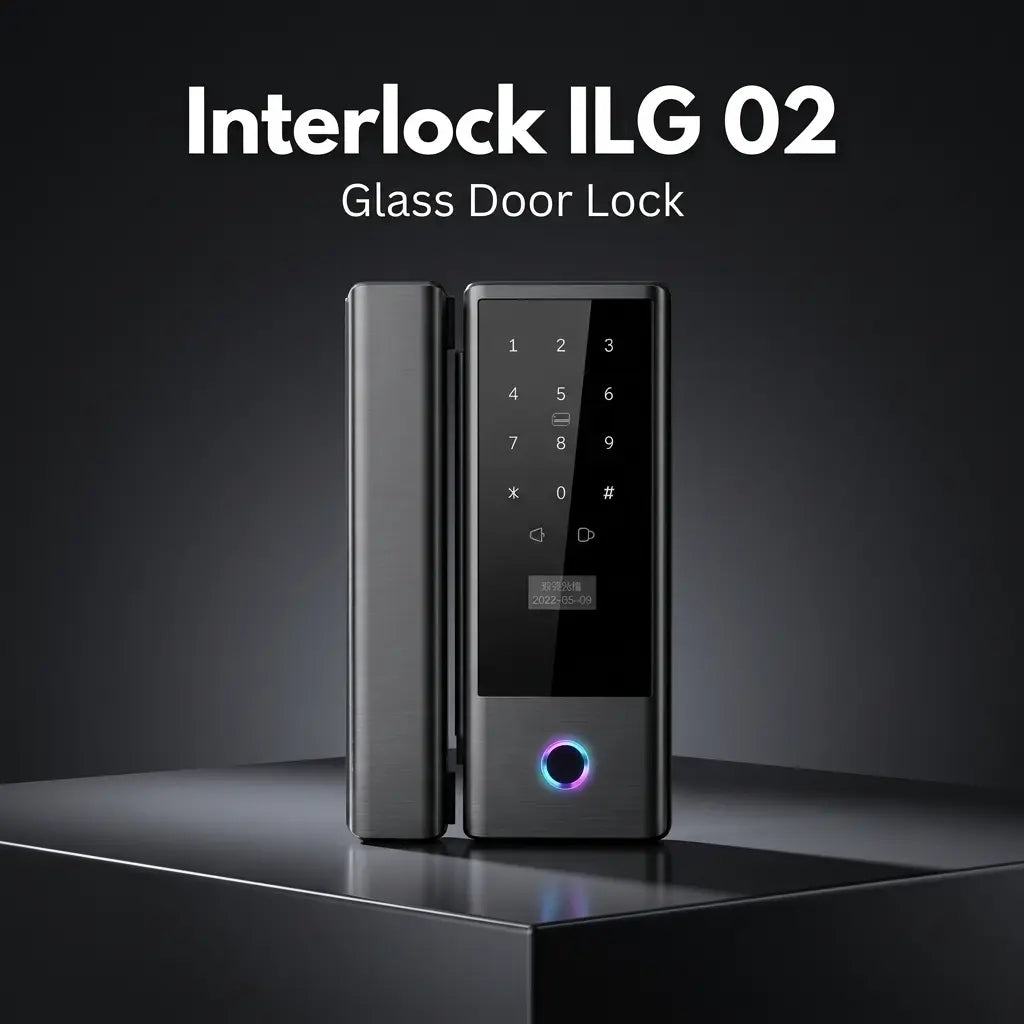

| Model | Interlock ILG-02 (TTLock version) |
|---|---|
| Lock Type | Rim (Smart Lock for Glass Door) |
| Unlocking Methods | Fingerprint, PIN Code, RFID Card, Temporary Password, Mechanical Key (no key on frameless glass installs) |
| Connectivity | Bluetooth (built-in, TTLock app control). Optional add-ons (sold separately): Bluetooth mini-program, Bluetooth attendance mode, RF Remote control, Wi-Fi remote unlocking via gateway |
| Power Source | 4x AA (1.5V) alkaline dry batteries; USB Type-C emergency power |
| Static Power Consumption | <= 120uA |
| Dimensions | Height: 185mm. Front assembly width: 70mm (keypad body) + 35mm (indoor clip); Rear assembly depth: 40mm + 25mm sections |
| Color | Matte Black, Space Gray, Champagne Gold |
| Product Weight | About 1.25kg |
| Applicable Door Type | Glass door, aluminum framed door, wooden door, sliding door |
| Door Type Specification | Door gap 3-10mm. Frameless glass door: 8-12mm thick glass (8mm glass needs thickening plates). Framed door: 40-70mm frame thickness |
| Operating Temperature | -25C to +65C |
| Fingerprint Speed | <= 0.3 seconds |
| Recognition Accuracy | False accept rate <= 0.001%, false reject rate <= 1% |
| Card Type | M1, IC |
| Fingerprint Capacity | Up to 100 |
| Card + Password Capacity | Up to 1000 groups (combined) |
| Mechanical Key | 2 keys included |
| Passage Mode | Supports scheduled passage mode (auto-unlock during set times/days) and automatic or manual locking mode |
