Note: Product visuals are presented for illustrative purposes only and may vary slightly in colour, finish, proportions, and final installed appearance. For the most realistic representation, please refer to our Customer Gallery featuring actual installation photos.
使用 Assa Abloy (iRevo) Gateman SP121 升级您的家居安全。作为全球领先的门禁解决方案供应商，Assa Abloy (iRevo) 是韩国排名第一的电子锁制造商，其推出的这款产品 SP121 提供便捷的密码和刷卡访问方式，价格实惠。凭借其时尚的设计和坚固耐用的结构，这款门锁既美观又实用，是您家居的理想之选。
Real installation photos from our customers.

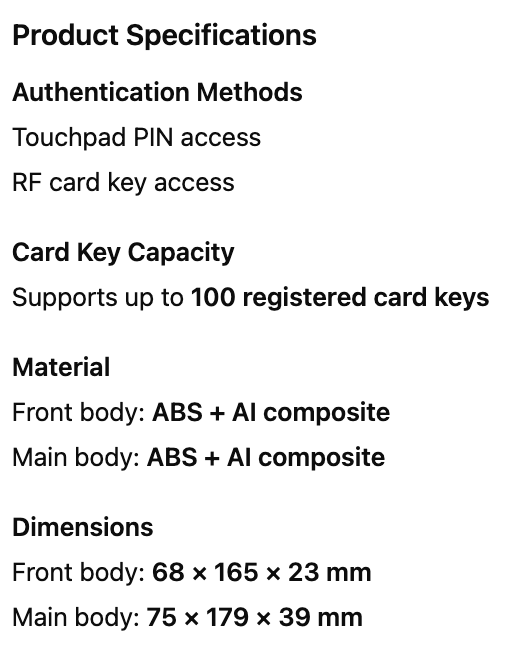

| Model | Gateman GR-Clip |
|---|---|
| Lock Type | Rim - clip-on, no-drill installation for glass doors |
| Unlocking Methods | PIN Code (1 shared password, 4-12 digits), RFID Card |
| Connectivity | None - fully offline, no app/Bluetooth/Wi-Fi |
| Power Source | 4x 1.5V AA (LR6) alkaline batteries; DC 6V rated; 9V external emergency power terminal |
| Battery Life | Up to 1 year (based on ~10 uses/day) |
| Warranty | 1 Year Parts and On-Site Warranty |
| Material | Front body: ABS + Aluminum; Main body: ABS + Aluminum |
| Dimensions | Front (exterior) body: 68mm (W) x 165mm (H) x 23mm (D); Main (interior) body: 75mm (W) x 179mm (H) x 39mm (D) |
| Card Key Capacity | Up to 100 registered card keys |
| Suitable Door Types | Glass Door |
| Security Features | Smart etiquette silent unlock, anti-peep fake-number entry, internal/external forced-lock mode, auto-lock (within 1 second of closing) or manual lock, intrusion and high-temperature alarms, 5-minute lockout after 5 failed attempts |
Frequently Asked Questions
Have questions? We're here to help you.
The Gateman GR Clip is designed for glass and sash door applications. It is commonly used on glass office doors, glass partitions, and other installations that support clip-type glass hardware.
The lock uses a clip-type mounting structure that attaches securely to compatible glass panels. This design reduces the need for extensive drilling or cutting compared to traditional mortise lock installations.
The Gateman GR Clip supports keypad PIN access and card key authentication, offering simple and flexible keyless entry for everyday use.
Yes. Its design is especially well-suited for offices, clinics, studios, and retail environments where glass doors are common and reliable keyless access control is required.
No. The Gateman GR Clip features an anti-fingerprint surface designed to minimise visible smudges and fingerprint marks, helping the lock maintain a clean and professional appearance.
Yes. The lock is commonly used together with compatible accessories such as GR-Frame, GR-Sash, and other Gateman glass door components to support different glass door configurations.
