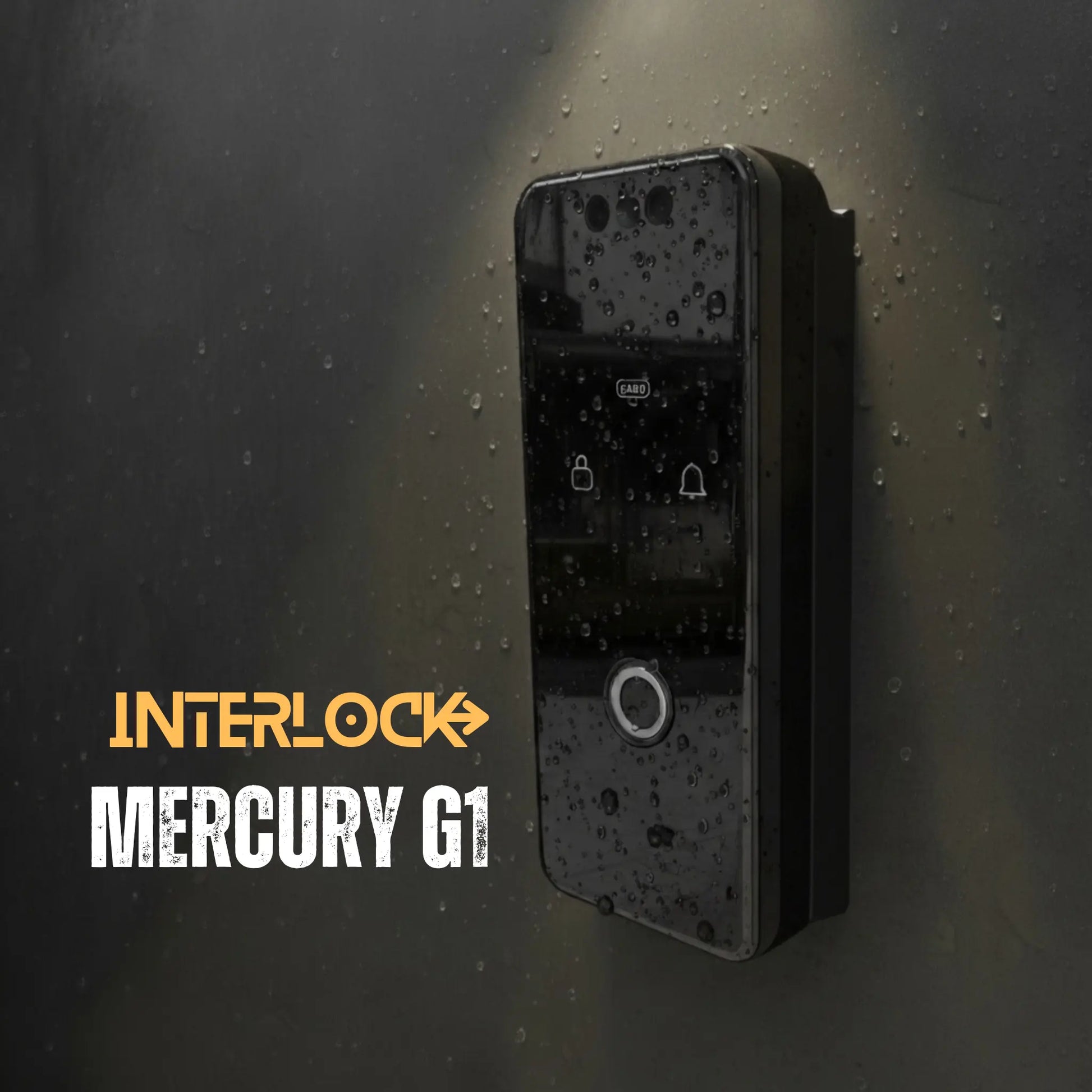

Facial Recognition for Your Gate

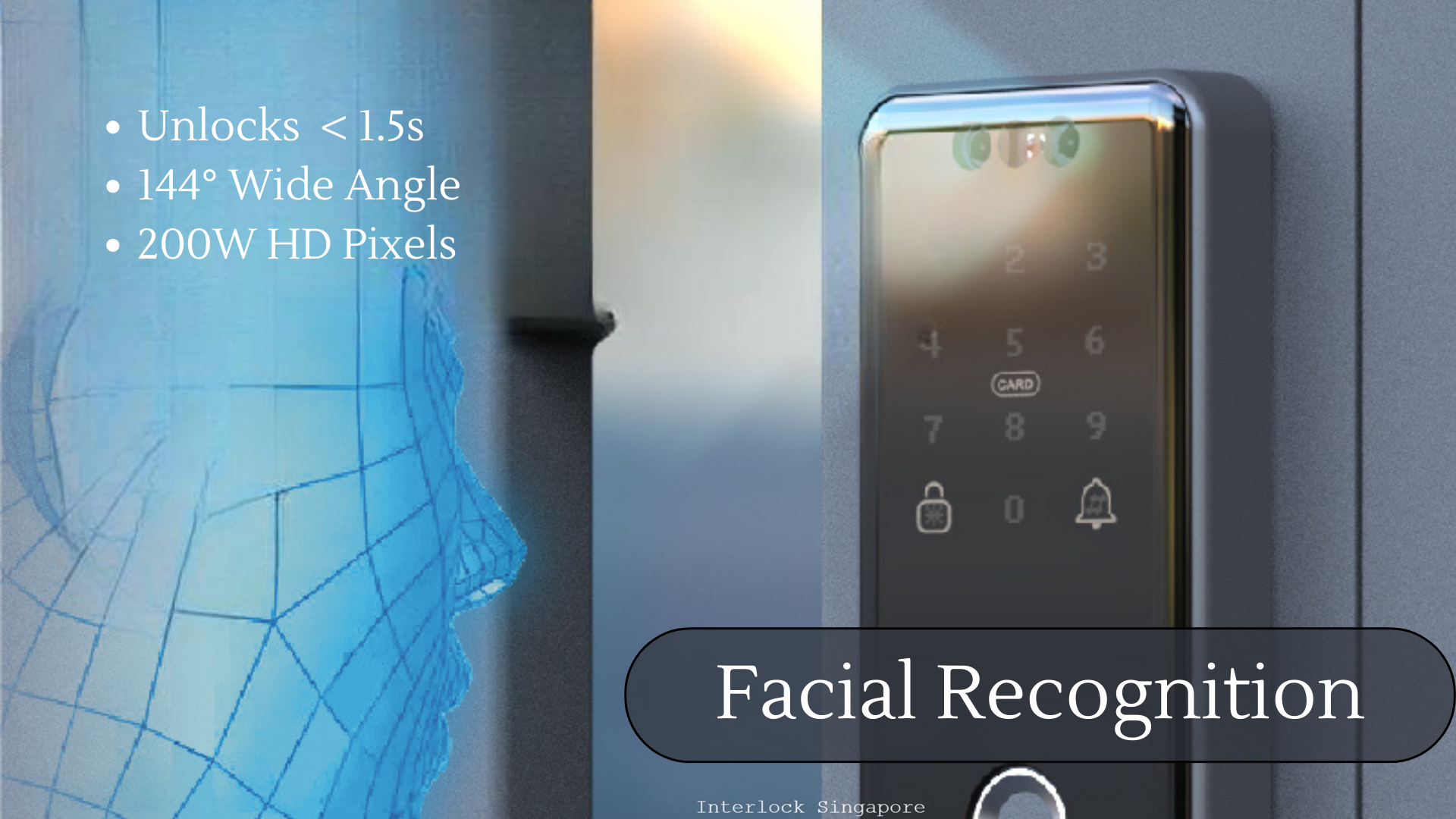

The Interlock Mercury G1 unlocks your gate via facial recognition in under 1.5 seconds at over 99% accuracy, using a wide-angle HD camera that keeps recognising you reliably whether it's harsh midday sun, an overcast afternoon, or the dim light of a covered corridor at night — no more standing at the gate waiting for a slow scan to catch up.
Ways to Unlock

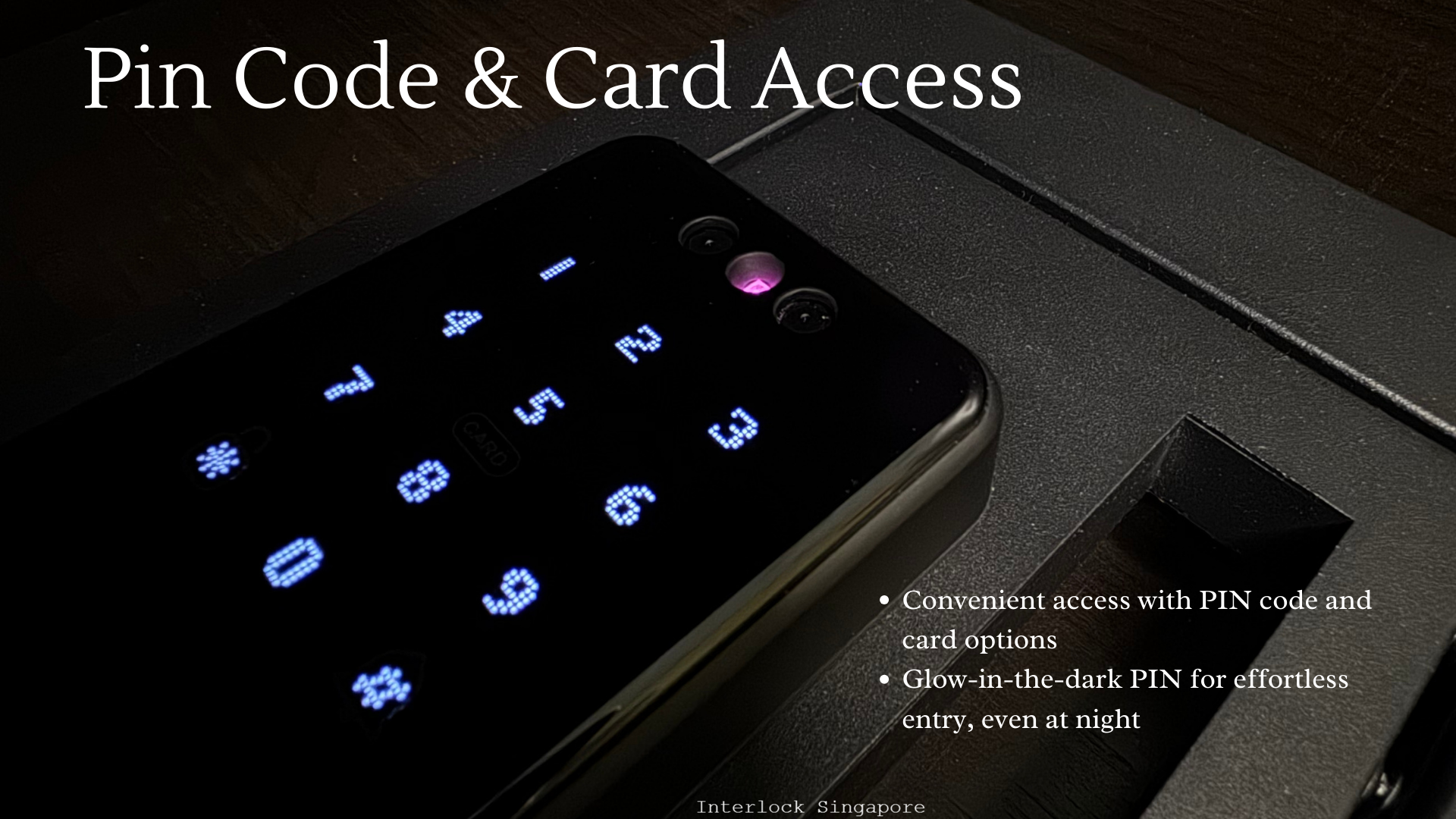

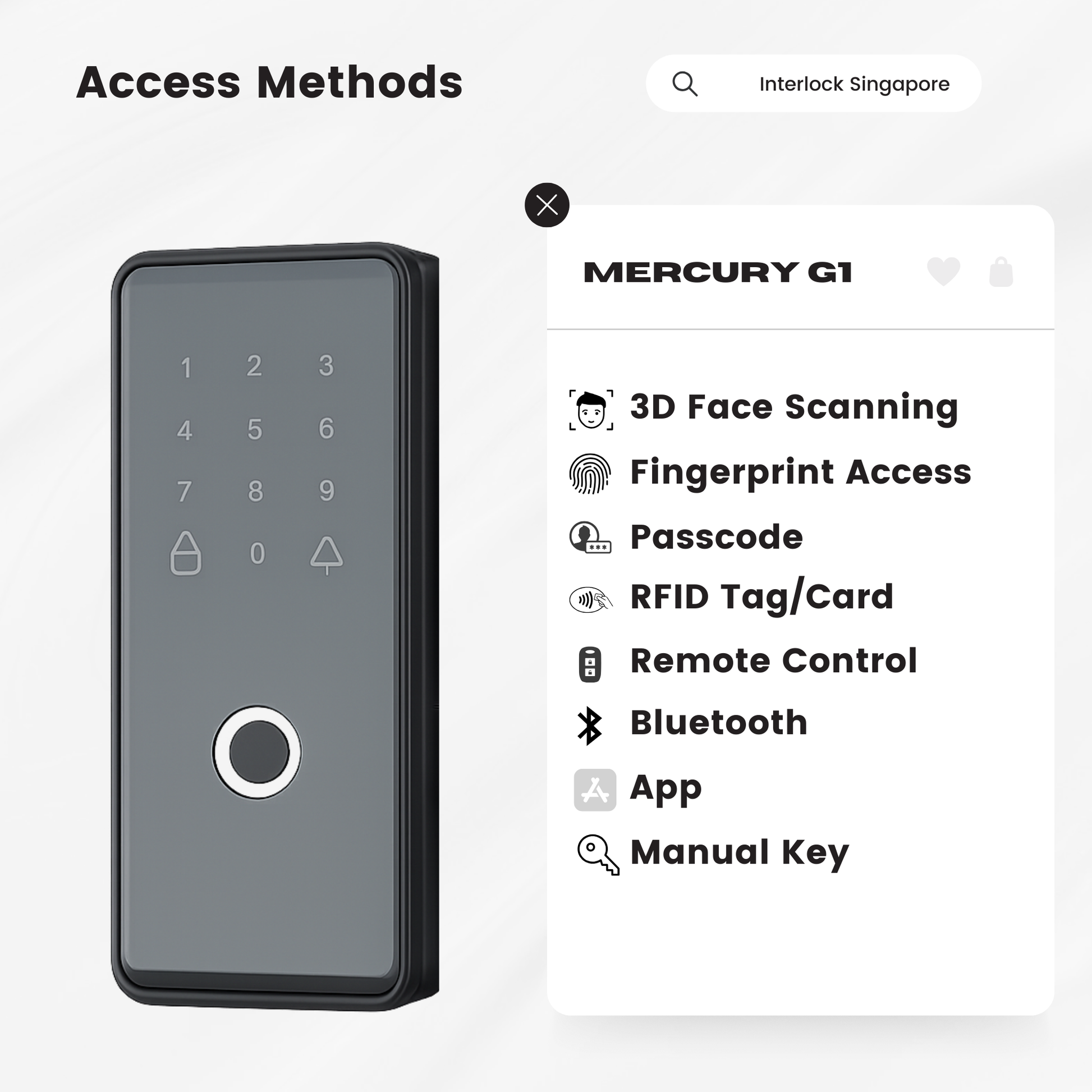

Face recognition, fingerprint, a numeric password, card or tag access, a physical remote control, and a mechanical key give you a full set of backup options if your primary method isn't available, so a flat phone battery or a face partially hidden by an umbrella in the rain never leaves you stuck outside. There's enough room registered on the lock for a large extended household, plus regular helpers or visitors, without anyone competing for space. Glow-in-the-dark PIN keys make entry easier at night, lighting up after dark so you're not fumbling to find the right digit.
Dual Sync with a Door Lock
Pair the G1 with a compatible Mercury door lock and both can be configured to unlock together, so you move from gate to door in one motion instead of two separate unlocks — one recognition event at the gate carries all the way to your front door.
App Control & Security

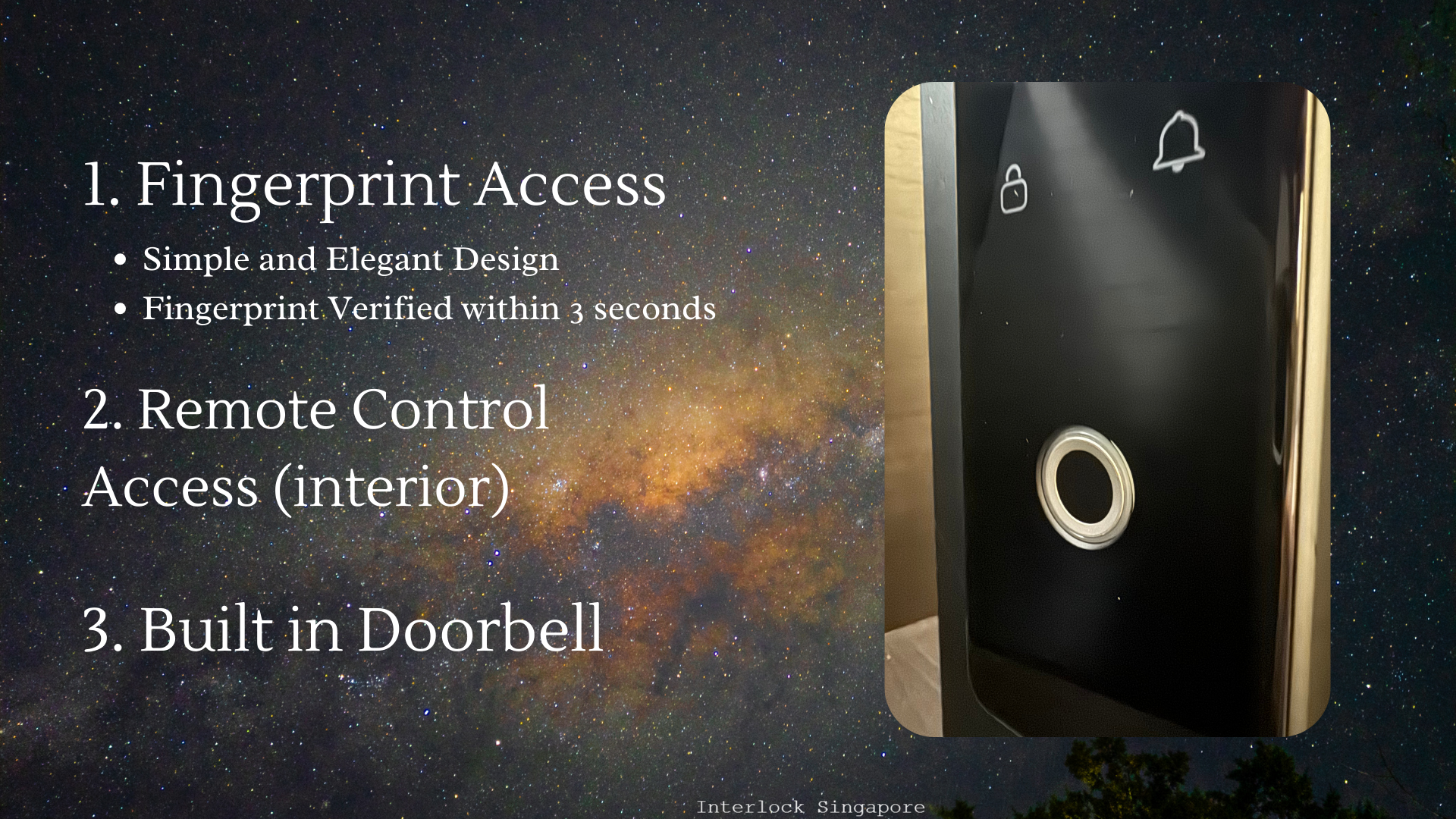

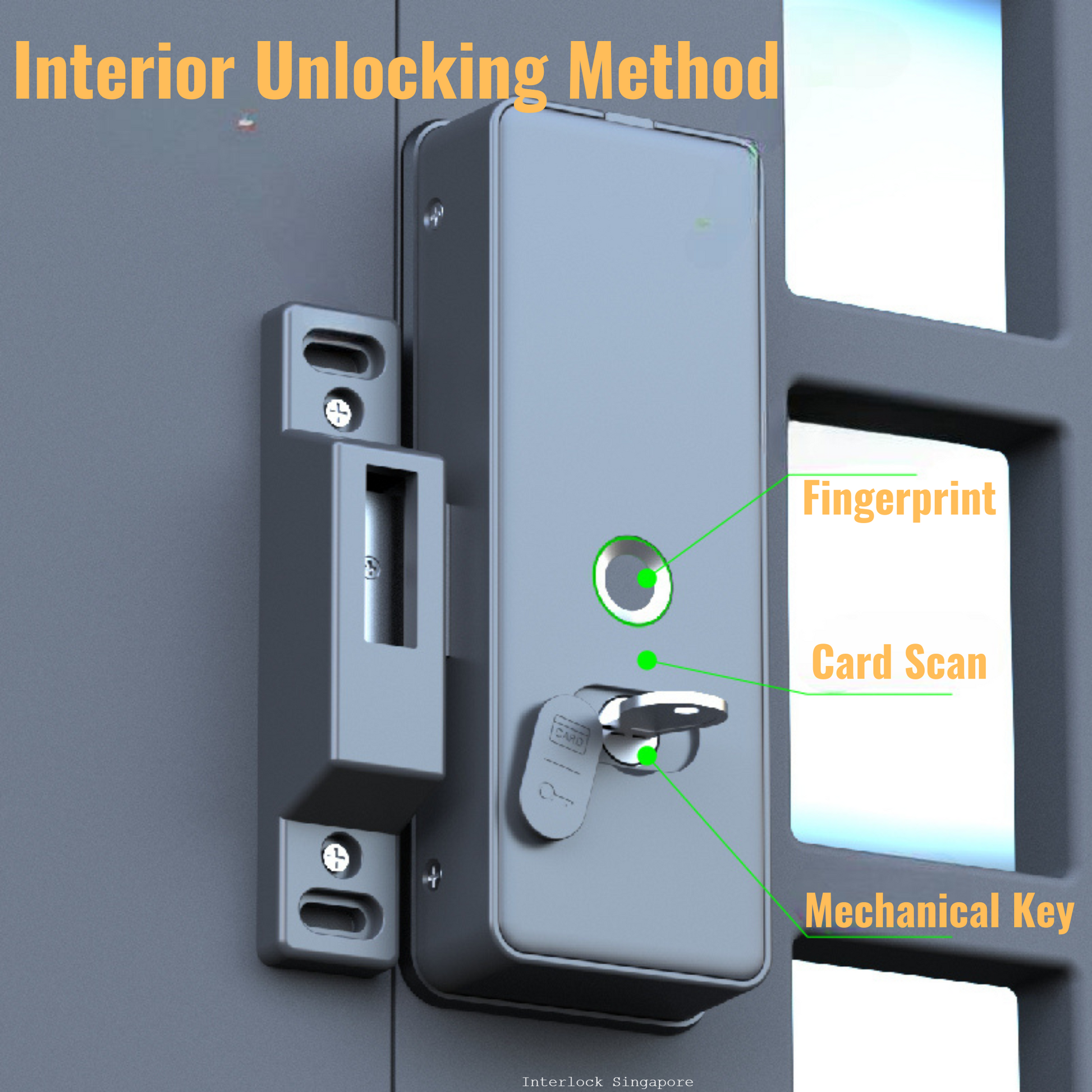

The G1 connects over Bluetooth to the Tuya Smart app, letting you check activity and manage access when you're near the gate, with a built-in doorbell pushing notifications to your phone the moment someone presses it and bilingual English/Chinese voice prompts guiding setup and use. A pry-proof alarm and anti-peep virtual password add extra protection, and interior remote control access lets you manage settings from inside the house without going back out to the gate itself.

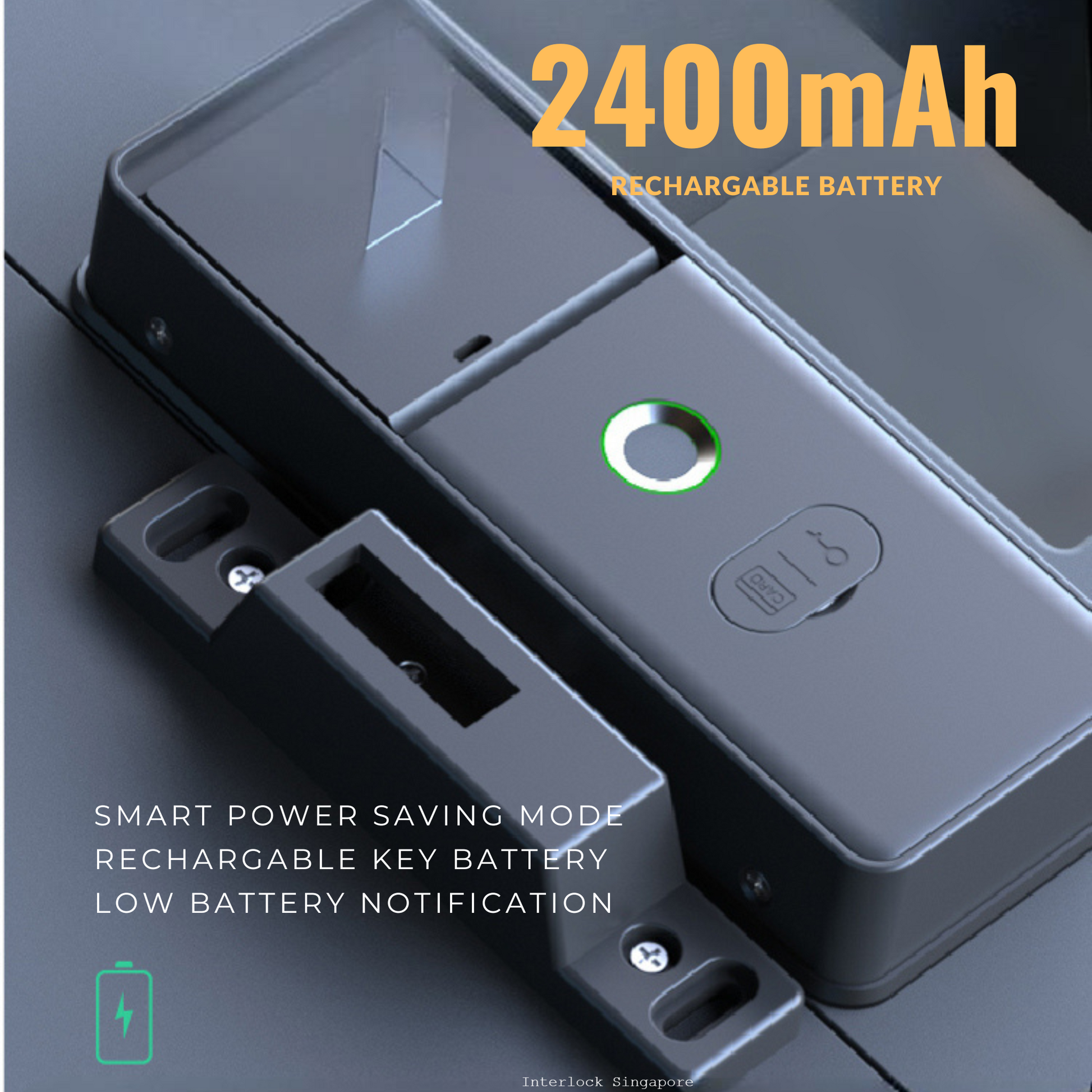

Battery & Power

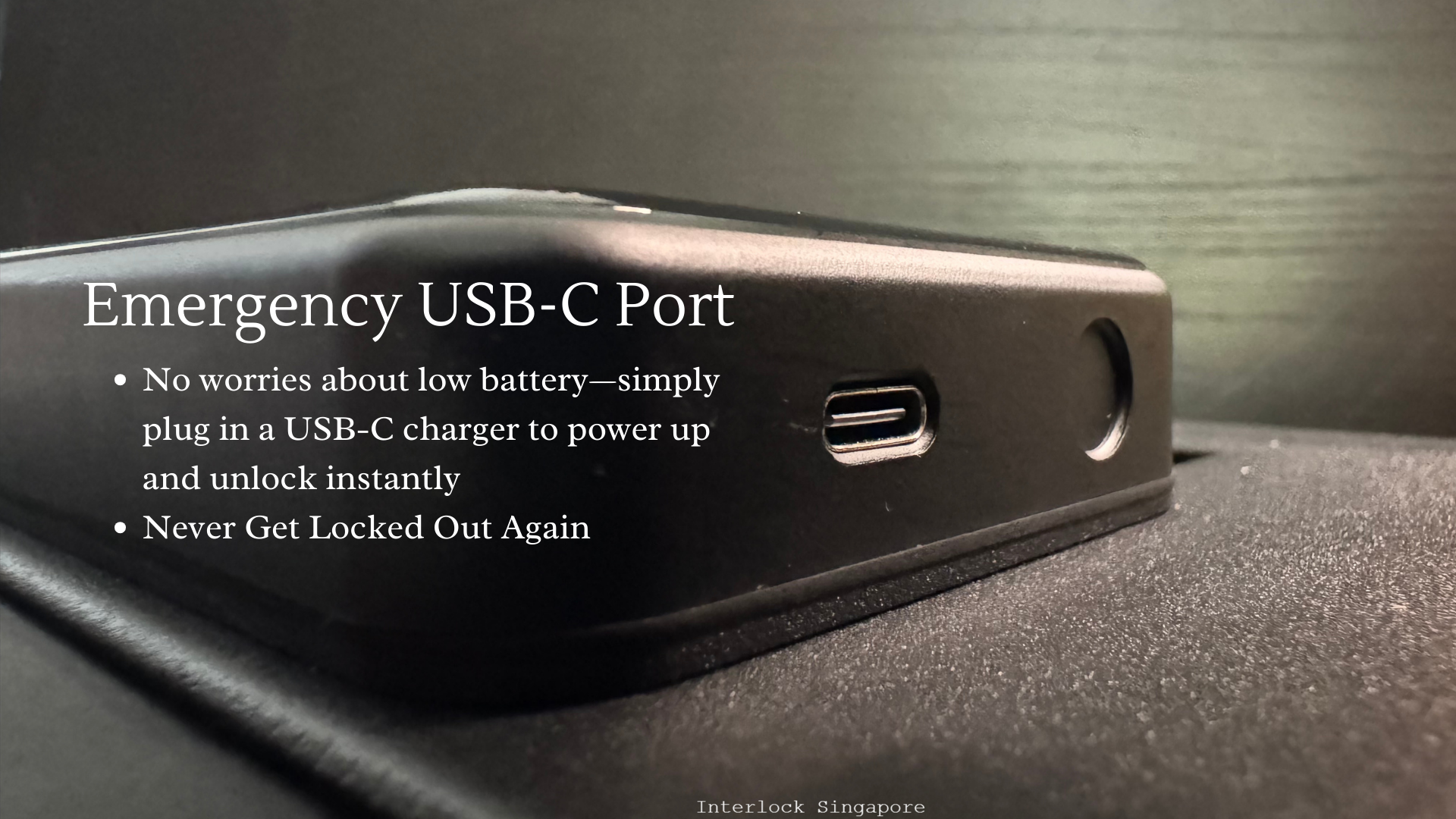

A rechargeable lithium battery is engineered for smart power-saving and gives plenty of advance warning before it runs low, so you're never caught out by a sudden dead battery. If it ever does run flat, USB-C emergency charging gets you back in using nothing more than a standard power bank.

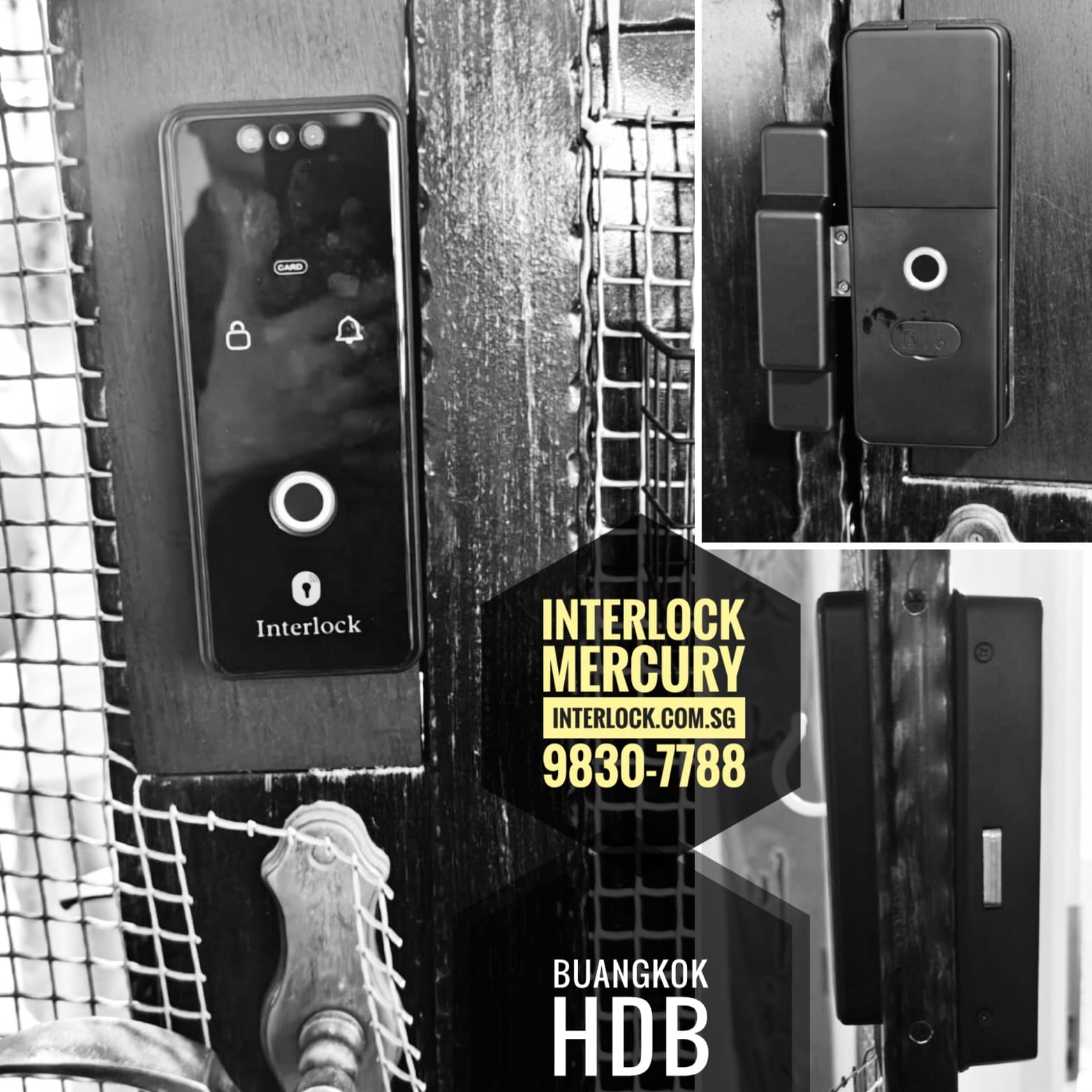

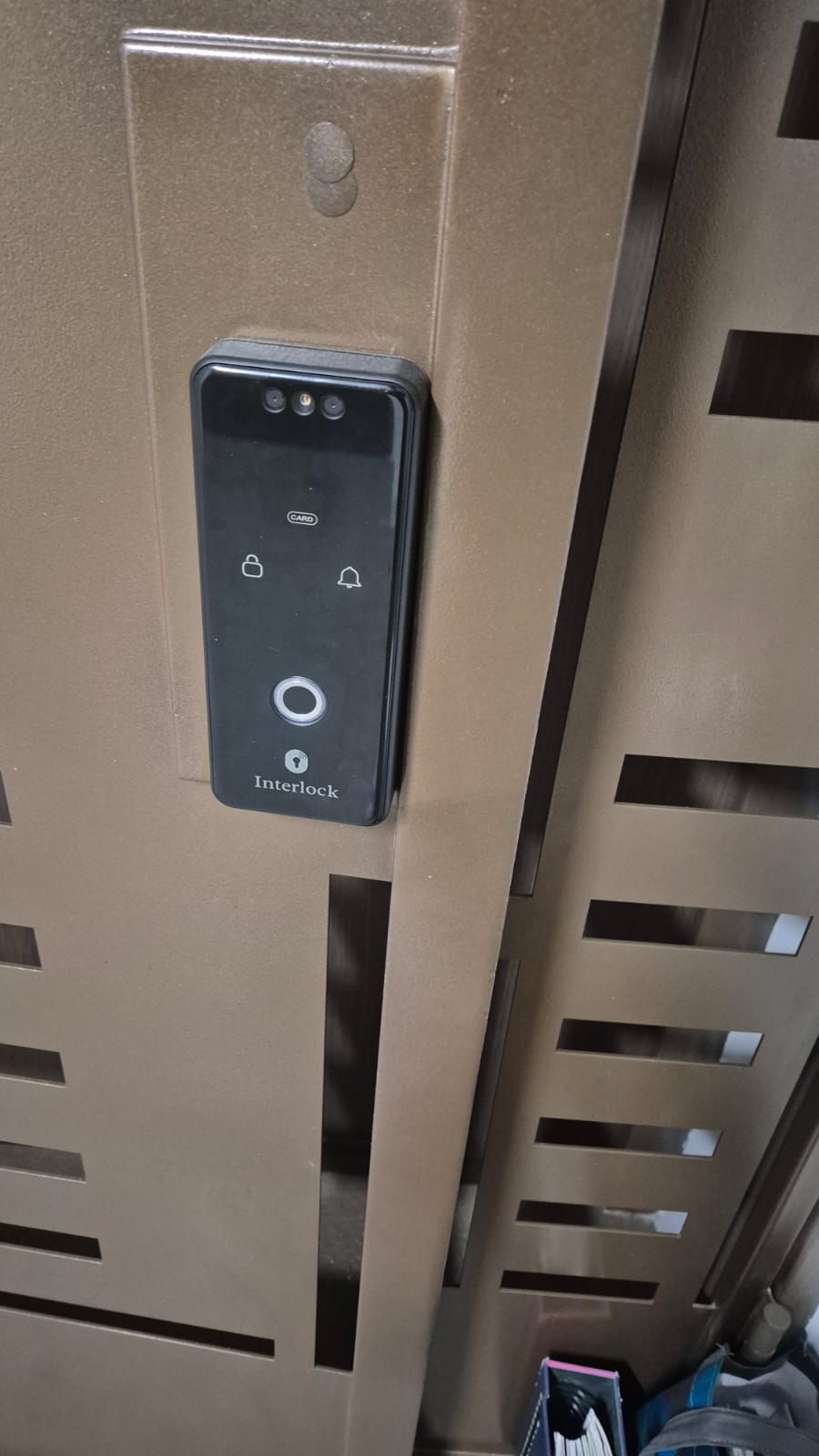

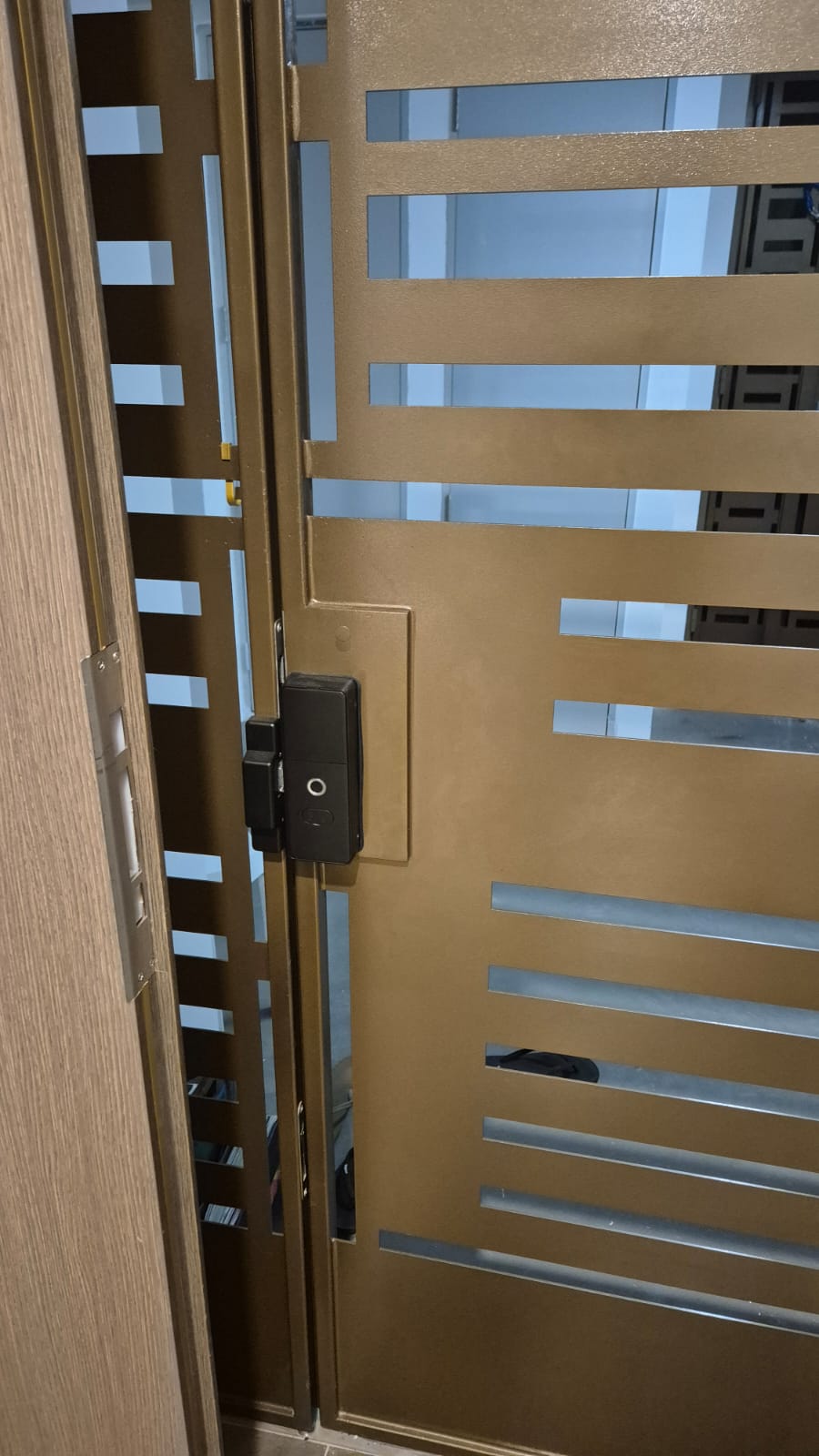

Real installation photos from our customers.
| Model | Interlock Mercury G1 |
|---|---|
| Lock Type | Rim |
| Unlocking Methods | Facial Recognition, Fingerprint, Password, Card/Tag, Remote Control, Manual Key |
| Connectivity | Bluetooth (Tuya Smart App) |
| Power Source | 7.4V, 2500mAh rechargeable lithium battery; 5V/2A USB Type-C emergency power |
| Battery Life | Up to 3 months under typical use; we recommend recharging monthly |
| Warranty | 1 year (onsite, product & battery warranty) |
| Color | Matte Black |

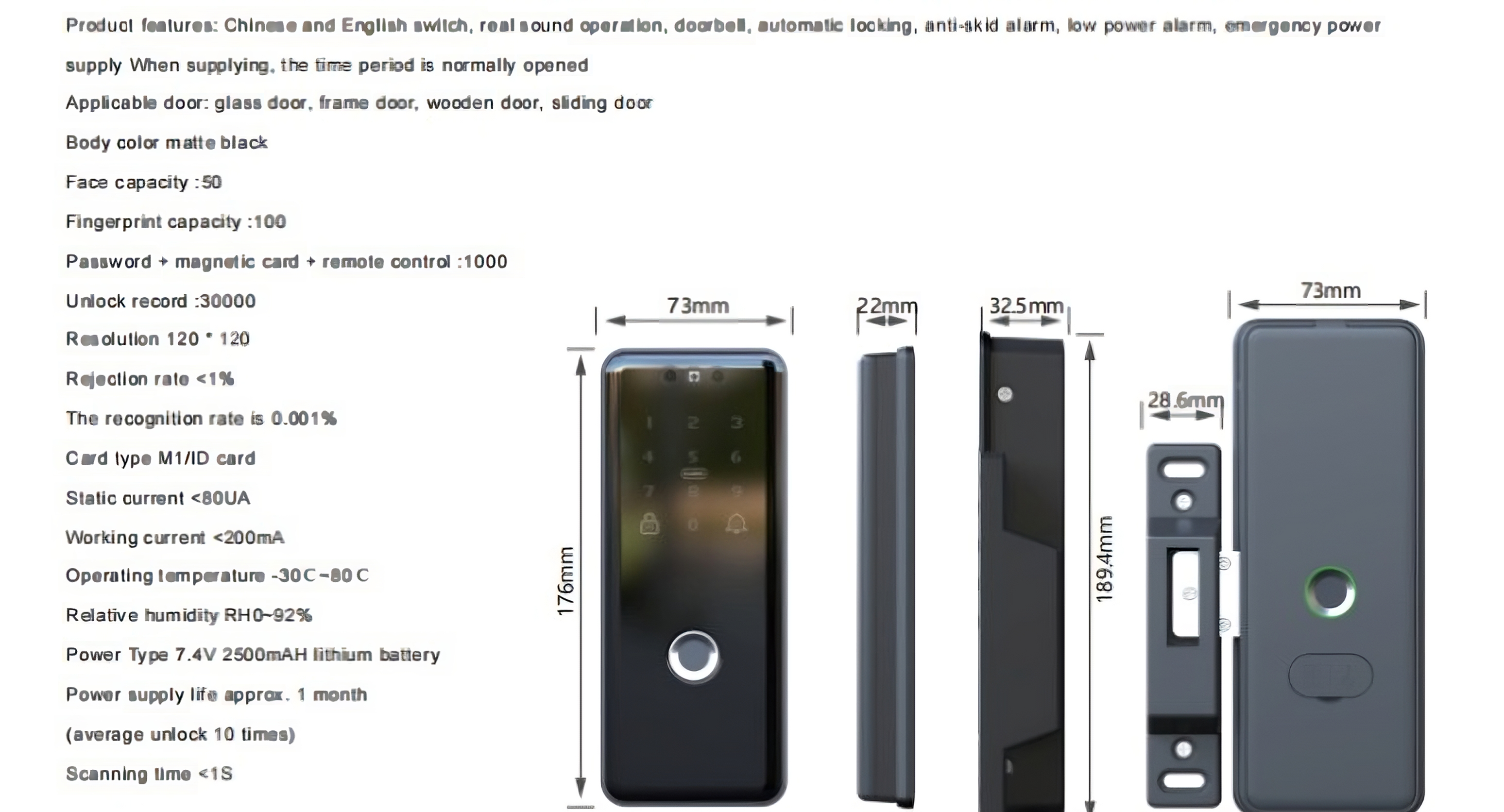

| Dimensions | Keypad Panel: 73mm (W) x 176mm (H); Side Depth: 22mm; Mounting Bracket: 32.5mm x 189.4mm; Rear Panel Width: 73mm; Strike Plate Width: 28.6mm |
| Face Capacity | Up to 50 face profiles |
| Fingerprint Capacity | Up to 100 fingerprints |
| Password / Card / Remote Capacity | Up to 1000 combined (password + card + remote control) |
| Recognition Rate | > 99% |
| Working Current | < 30uA |
| Static Power Consumption | < 350uA |
| Dual Sync | Supports synchronized pairing with a compatible Mercury door lock |
| Features | Doorbell, auto-lock, low-battery alert, emergency power supply, bilingual (Chinese/English) voice prompts |
