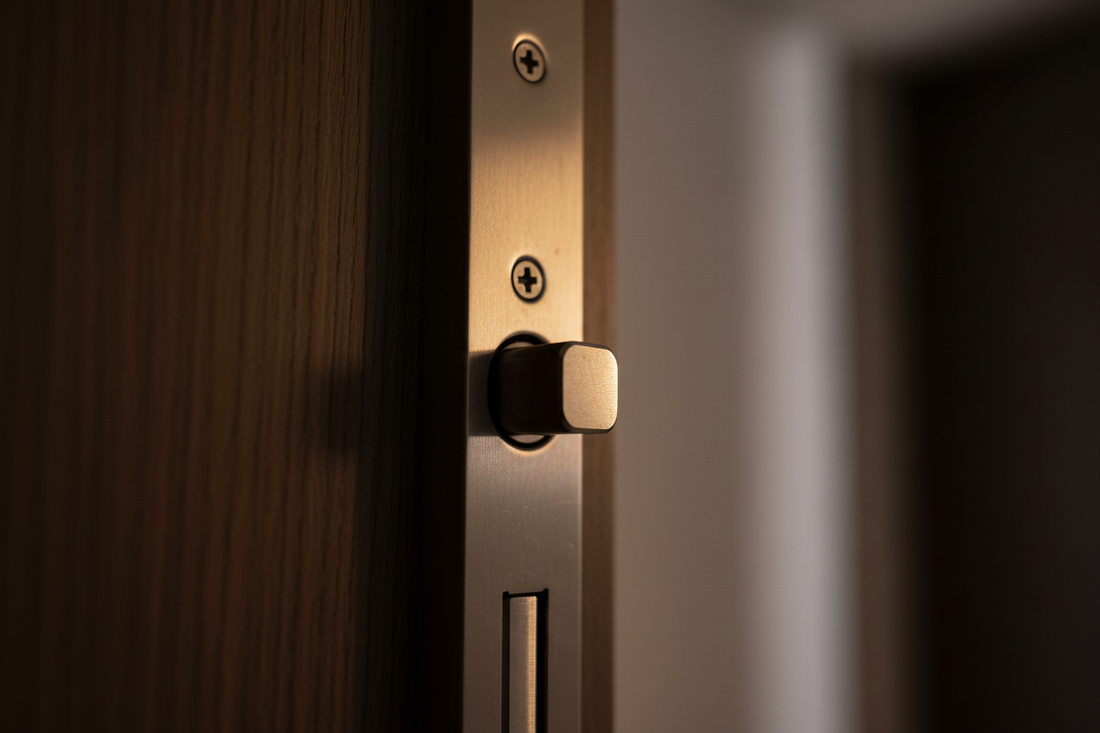

Digital Lock Cannot Auto-Lock? Door Alignment Explained

You close the door and expect the digital lock to secure it automatically.

Instead, the lock may:

• Remain unlocked
• Make a warning sound
• Announce that it is unable to lock
• Move the motor several times
• Extend the bolt but fail to enter the strike opening
• Lock successfully only when the door is pushed or pulled

Does this mean the digital lock is faulty?

Not necessarily.

In many cases, the lock is responding correctly but the door, gate, strike or locking bolt is no longer in the correct position.

A digital lock cannot compensate for a door that is not fully closed or a bolt that no longer lines up with the strike opening.

Jump to a Section

• How digital lock auto-locking works
• Three different auto-lock problems
• How door alignment affects auto-locking
• Why doors and gates bounce after closing
• Common causes of auto-lock failure
• Sliding door auto-lock problems
• Gate lock alignment problems
• Troubleshooting steps
• What a technician can and cannot fix
• How to prevent future alignment problems
• Frequently asked questions

---

How Does Digital Lock Auto-Locking Work?

The exact sequence varies between lock models, but many digital locks follow a process similar to this:

1. The door reaches its closed position.
2. The lock detects or assumes that the door has closed.
3. The lock waits for its programmed delay.
4. The motor moves the locking bolt.
5. The bolt enters the strike opening.
6. The lock completes or confirms the locked position.

For auto-locking to work properly, two separate conditions must be met:

• The lock must trigger the automatic locking command.
• The bolt must be physically able to enter the strike opening.

If the lock never receives or detects the closed-door condition, auto-locking may not begin.

If the lock begins moving but the bolt cannot enter the strike, the lock may retry, reverse or announce that it is unable to lock.

Auto-Lock Is Both Electronic and Mechanical

The electronic system decides when the lock should activate.

The mechanical system must then move the bolt into the correct physical position.

This is why a digital lock can have a functioning keypad, sensor, motor and battery but still fail to auto-lock when the door is misaligned.

---

Three Different Auto-Lock Problems

Before troubleshooting, identify what the lock is actually doing.

Problem 1: Auto-Locking Does Not Trigger

The door closes, but the lock remains silent and makes no attempt to lock.

Possible causes include:

• The door is not reaching the required closed position
• The door sensor or magnet is not aligned on models that use one
• Auto-lock mode has been disabled
• The lock has not detected the door as closed
• The battery level is too low
• A setting or component requires assessment

Problem 2: The Lock Tries but Cannot Complete the Locking Movement

The motor activates, but the bolt cannot enter the strike opening.

You may hear:

• A longer motor sound
• Several repeated attempts
• A warning tone
• An “unable to lock” announcement

This commonly points towards:

• Door or gate misalignment
• Pressure against the bolt
• A shifted strike opening
• A door that is not fully closed
• An obstruction inside the strike

Problem 3: The Lock Works Sometimes but Not Every Time

The lock may auto-lock correctly during one attempt but miss during the next.

This can happen when the door or gate does not stop in exactly the same position every time.

For example:

• The door closes gently during one attempt
• The door bounces backwards during another attempt
• The gate shifts slightly after hitting the frame
• The door closer does not pull the door fully into position

This is sometimes described as a “hit-and-miss” auto-lock problem.

---

How Door Alignment Affects Digital Lock Auto-Locking

When a digital lock is installed, the bolt is aligned with a specific strike opening in the door frame, gate bracket or receiving plate.

The available clearance may be limited.

If the door moves even slightly up, down, inward or outward, the bolt may contact the edge of the strike instead of entering it smoothly.

Vertical Misalignment

The bolt sits above or below the strike opening.

This may happen when:

• The door has sagged
• The hinges are worn or loose
• The gate has dropped slightly
• The frame or bracket has shifted

Horizontal Misalignment

The bolt is positioned too far left or right.

This may be caused by:

• Door movement
• A shifted strike plate
• Loose gate brackets
• Changes to the frame
• An installation position that no longer matches the door’s resting point

Depth Misalignment

The door may be too far inward or outward when it stops.

The bolt may appear aligned from the front but still press against the strike because the closing depth has changed.

Pressure Against the Bolt

Even when the bolt and strike appear aligned, the door may be pushing against the bolt.

This pressure can come from:

• Weather seals
• A tight door frame
• A warped door
• A strong door closer
• A gate under tension
• The user pulling or pushing the door while the lock activates

The motor must then work against additional resistance.

---

Why Does the Door or Gate Bounce After Closing?

A door may reach the fully closed position momentarily and then move away from it.

This movement may be small, but it can be enough for the bolt to miss the strike opening.

Possible reasons include:

• The door or gate was closed with excessive force
• The door closer is moving too quickly
• The rubber seal pushes the door back
• The latch does not hold the door firmly
• The gate frame flexes slightly
• The sliding panel rebounds from its stopper
• The door is not being pulled fully into the frame

How Bouncing Creates a Hit-and-Miss Lock

The sequence may look like this:

1. The door reaches the fully closed position.
2. The lock detects the closed position and begins auto-locking.
3. The door bounces or shifts away from the frame.
4. The bolt extends towards the strike.
5. The strike opening is no longer in the correct position.
6. The bolt hits the bracket or frame instead of entering the opening.

The lock may work perfectly when the door stays fully closed but fail whenever the door rebounds.

---

Common Reasons a Digital Lock Cannot Auto-Lock

1. The Door Is Not Fully Closed

The door may look closed while still sitting slightly away from the required position.

This can happen when:

• A bag, mat or object obstructs the door
• The latch does not catch
• The door closer is too weak
• A weather seal pushes the door outward
• The user releases the door before it reaches the frame

2. The Door Has Sagged

Doors and gates can shift over time.

Loose or worn hinges may cause the door to sit lower than when the lock was installed.

Possible signs include:

• The door rubs against the floor or frame
• The door must be lifted slightly to close
• The bolt hits the upper or lower edge of the strike
• The door gap is uneven

3. The Strike Plate or Bracket Has Shifted

The receiving strike may become loose or move after repeated use.

Even a small change can prevent the bolt from entering smoothly.

4. The Door Closer Is Not Adjusted Properly

A door closer that is too slow may not bring the door fully into the frame.

A closer that is too fast may cause the door to hit the frame and bounce backwards.

Some closers also have separate speed settings for the main swing and final latching movement.

5. The Door or Frame Has Expanded, Warped or Shifted

Wooden doors and frames may change slightly because of humidity, temperature, age or structural movement.

A door that previously closed freely may become tighter against the frame.

6. The Gate Is Flexing or Rebounding

Metal gates can move after impact, especially when closed forcefully.

The gate may touch the correct position and then rebound before the bolt completes its movement.

7. The Strike Opening Is Obstructed

Dirt, debris, loose material or part of the frame may block the strike opening.

Do not insert fingers or tools into the strike while the lock is operating.

8. The Battery Is Low

A low battery may reduce the motor’s ability to complete the locking movement, especially when resistance is already present.

The lock may still turn on and recognise users while struggling under motor load.

9. The Lock Motor or Bolt Requires Assessment

If the bolt struggles even when there is no contact with the strike, the lock mechanism itself may require inspection.

10. The Auto-Lock Setting Is Disabled

Some locks allow users to switch between automatic and manual locking modes.

Check the lock settings before assuming that the sensor or hardware has failed.

---

Why Sliding Door Locks Can Miss the Auto-Lock Position

A sliding door or sliding gate must reach and remain at its fully closed position for the locking bolt to align with the receiving bracket.

If the sliding panel closes and then rebounds, the bolt may no longer line up with the bracket opening.

This can create an intermittent result:

• The lock works when the panel stays fully closed
• The lock misses when the panel bounces backwards
• The lock succeeds when someone holds the panel in position
• The lock fails after a forceful closing movement

Example of a Sliding Door Auto-Lock Failure

1. The sliding door reaches the fully closed position.
2. The lock begins its auto-lock sequence.
3. The panel rebounds slightly from the stopper.
4. The locking bolt extends.
5. The receiving hole has shifted away from the bolt.
6. The lock cannot complete the locking movement.

The digital lock cannot force the entire sliding door back into its fully closed position.

The track, stopper, roller, closing force or receiving bracket may need adjustment.

---

Why Gate Lock Auto-Locking Can Be More Sensitive

A metal gate may be lighter, more flexible or more likely to rebound than a solid main door.

The lock and receiving bracket are also installed on separate moving and fixed sections.

Gate lock auto-locking may be affected by:

• The gate not remaining fully closed
• A loose or shifting bracket
• The gate dropping on its hinges
• Strong closing impact
• The gate flexing after it hits the frame
• The bolt and receiving hole having limited clearance
• Pressure from the main door or surrounding frame

If the gate lock works when the gate is gently held in position but misses after normal closing, inspect the gate movement and bracket alignment.

Door-and-Gate Distance

For homes with both a digital door lock and gate lock, the available distance between the main door and gate also affects installation.

Handles, lock bodies and moving parts must have sufficient clearance when both the door and gate are closed.

Insufficient clearance may place pressure on one of the locks or prevent the entrance from reaching its intended closed position.

---

How to Troubleshoot a Digital Lock That Cannot Auto-Lock

Step 1: Observe Whether the Lock Attempts to Lock

Close the door normally and listen.

Determine whether:

• The lock remains completely silent
• The motor activates once
• The motor retries several times
• The lock gives an error or warning

This helps distinguish a trigger problem from a bolt-alignment problem.

Step 2: Confirm That the Door Is Fully Closed

Close the door slowly and observe whether it sits firmly against the frame.

Check whether it:

• Stops before reaching the frame
• Bounces backwards
• Needs an extra push
• Moves after being released
• Can be pulled or pushed further into position

Step 3: Apply Light Pressure During One Test

During a controlled test, gently hold the door in its fully closed position while the lock activates.

If the lock succeeds only while the door is being held, the door’s resting position or alignment is likely contributing to the failure.

Do not place fingers near the bolt or strike opening.

Step 4: Inspect the Bolt and Strike Position

Look for:

• Scrape marks around the strike opening
• Damage at the upper or lower edge
• A loose strike plate
• A bracket that has moved
• An uneven door gap
• A bolt that contacts the frame

Scrape marks can help show where the bolt is hitting.

Step 5: Check the Battery Level

Recharge the approved battery pack or replace the complete battery set if the battery is low.

Test the lock again after sufficient power has been restored.

Step 6: Check for Motor Retries or Warning Messages

Repeated motor attempts or an “unable to lock” message commonly indicate that the lock detected resistance.

Do not repeatedly force the lock to continue trying.

Step 7: Test Several Closing Attempts

Test the door several times using:

• A gentle closing movement
• The normal daily closing movement
• A slow closing movement

Record whether the lock fails only after the door bounces or closes forcefully.

Step 8: Check the Auto-Lock Setting

Confirm that automatic locking is enabled and that the selected delay is appropriate.

Step 9: Avoid Filing or Enlarging the Strike Yourself

Removing material from the door, frame or strike without identifying the actual direction of movement may create a larger problem.

The alignment should be checked before permanent modifications are made.

Step 10: Arrange an Assessment

If the lock continues failing, a technician may need to inspect:

• The bolt movement
• The strike or bracket position
• The hinges
• The door closer
• The door or gate resting position
• The battery and motor
• The door sensor or magnet where applicable

---

What Can a Technician Do?

Depending on the cause, a technician may be able to:

• Confirm whether the lock motor operates normally
• Check whether the bolt aligns with the strike
• Adjust the strike plate or receiving bracket
• Tighten loose lock or bracket components
• Review the door sensor or magnet position
• Check the lock battery and motor response
• Confirm whether the lock works when the door is fully closed

What a Lock Technician May Not Be Able to Solve Permanently

If the door or gate repeatedly bounces, shifts or fails to remain in its fully closed position, adjusting the lock alone may not provide a permanent solution.

The underlying issue may involve:

• The door closer
• The hinges
• The gate frame
• The sliding track or roller
• The stopper
• The door structure
• The floor or wall alignment

A door, gate, glass or carpentry contractor may be required to correct the movement.

---

How to Prevent Future Auto-Lock Alignment Problems

• Avoid slamming the door or gate
• Close sliding panels with controlled force
• Keep hinges tightened and maintained
• Inspect the strike plate if the bolt begins scraping
• Adjust the door closer when closing speed changes
• Keep the strike opening clear of debris
• Respond to “unable to lock” warnings
• Do not continue forcing the lock against resistance
• Check the battery regularly
• Arrange an assessment when the door begins sagging or rubbing

Alignment problems are often easier to correct when they are identified early.

Continuing to operate a lock against repeated resistance may increase motor wear and battery usage.

---

Frequently Asked Questions

Why is my digital lock not auto-locking?

The door may not be fully closed, auto-lock mode may be disabled, the battery may be low, or the lock may not be detecting the closed-door position.

Why does the lock try to auto-lock but fail?

The locking bolt may be hitting the strike, frame or bracket because of misalignment, door movement or pressure against the bolt.

Why does the lock say “unable to lock”?

This often means that the motor encountered resistance and could not complete the locking movement.

Why does the lock work when I push the door?

Pushing the door may move the bolt and strike back into alignment. This suggests that the door’s normal resting position is contributing to the problem.

Can loose hinges affect a digital lock?

Yes. Loose or worn hinges may cause the door or gate to sag, shifting the bolt away from the strike opening.

Can slamming the door damage the auto-lock?

Repeated strong impact may affect alignment, loosen brackets and increase stress on the internal components. It may also cause the door or gate to bounce away from its closed position.

Why does the lock work sometimes but fail at other times?

The door or gate may not stop in the same position during every closing attempt. Bouncing, shifting or inconsistent closing force can create intermittent alignment.

Can a low battery cause auto-lock failure?

Yes. A low battery may reduce the motor’s ability to overcome resistance, even when the keypad and local access methods still work.

Should I enlarge the strike opening?

Not before the direction and cause of the misalignment have been identified. Enlarging the wrong area may create security, appearance or locking problems.

Why does the sliding door lock miss the bracket?

The sliding panel may rebound after reaching the fully closed position. When the panel moves, the receiving hole no longer aligns with the bolt.

Can the installer guarantee that the door will not bounce?

No. The installer can verify lock operation and alignment at the fully closed position, but ongoing door or gate movement may require adjustment by the appropriate door, gate or sliding-system contractor.

How do I know whether the lock or door is the problem?

If the lock operates smoothly when the door is correctly positioned but fails when the door is released, the door movement or alignment is likely contributing. If the bolt struggles without contacting the strike, the lock itself may require assessment.

---

Need Help with a Digital Lock That Cannot Auto-Lock?

Start by observing whether the lock attempts to activate and whether the door remains fully closed.

If the lock succeeds only when the door is pushed, pulled or held in position, the issue is likely related to alignment, closing movement or pressure against the bolt.

If the motor struggles even when the bolt is clear of the strike, the lock may require further assessment.

Auto-lock behaviour varies according to the lock model, door sensor design, battery condition, bolt alignment, strike position, hinges, closing speed and door or gate movement. A digital lock can only complete its locking action when the entrance reaches and remains in the required closed position.
