为什么重要
为您真实的回家方式而设计。
使用 Assa Abloy (iRevo) Gateman SP121 升级您的家居安全。作为全球领先的门禁解决方案供应商，Assa Abloy (iRevo) 是韩国排名第一的电子锁制造商，其推出的这款产品 SP121 提供便捷的密码和刷卡访问方式，价格实惠。凭借其时尚的设计和坚固耐用的结构，这款门锁既美观又实用，是您家居的理想之选。
Real installation photos from our customers.
| Model | Gateman SP122 |
|---|---|
| Lock Type | Mortise |
| Unlocking Methods | Card/Tag (RFID)(up to 20 users), PIN Code (4-12 digits), push/pull handle (no mechanical key override) |
| Connectivity | None - fully offline, no app/Bluetooth/Wi-Fi |
| Power Source | 4x 1.5V alkaline AA (LR6) batteries; 9V external emergency battery terminal |
| Battery Life | Up to 1 year (based on ~10 uses/day) |
| Warranty | 1 Year Parts and On-Site Warranty |
| Dimensions | Outdoor (Front Body): 80mm (W) x 304mm (H) x 26mm (D); Indoor (Main Body): 80mm (W) x 294mm (H) x 36mm (D) |
| Material | ABS (indoor main body) |
| Operating Temperature | -15C to 55C (sensor rated up to 55C) |
| What is in the Box | Outdoor Front Body, Indoor Main Body, Mortise, User Manual, Installation Guide, 4x AA Batteries, 4x Card Keys, Warranty Card, Alarm Sticker, Screws |
| Optional Accessories | Wireless Remote Control (sold separately), Home Care Communication Pack (sold separately) |
| Suitable Door Types | Wooden Door |

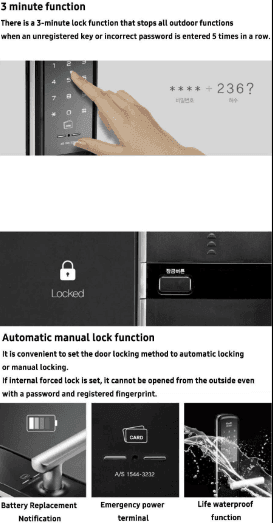

| Security Features | Auto-lock (5 seconds after door closes, configurable), Double Lock mode (blocks outside unlock), intrusion alarm, high-temperature/fire alarm with auto-release, low-battery indicator light and melody, keypad suspension for 3 minutes after 5 failed attempts, adjustable lock volume (High/Medium/Silent) |
