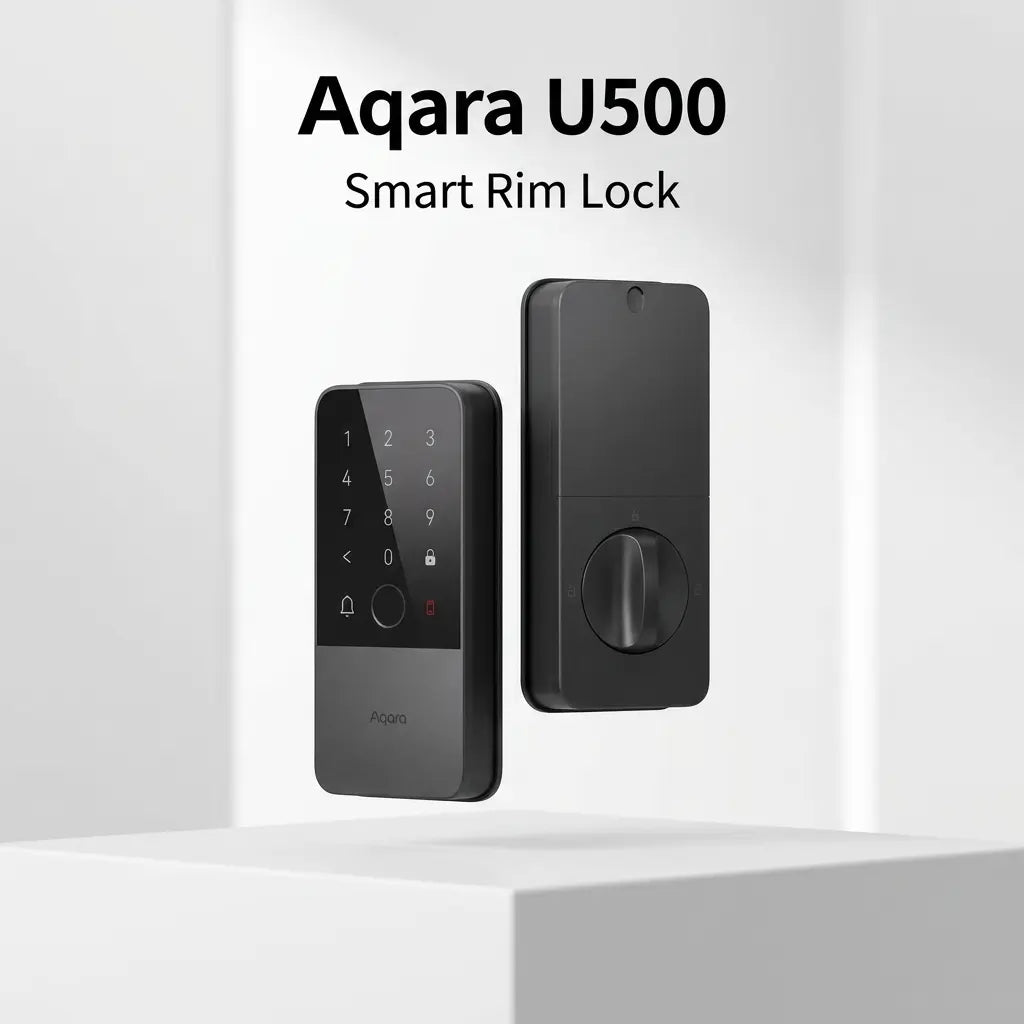

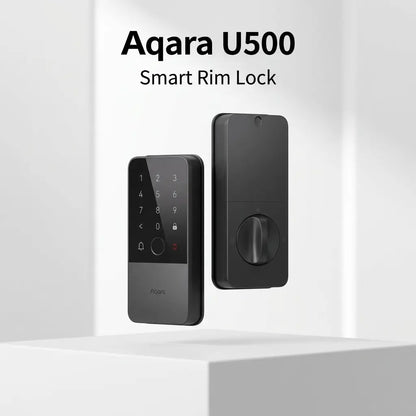

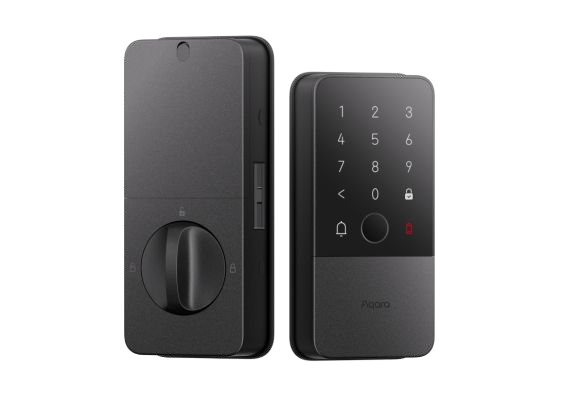

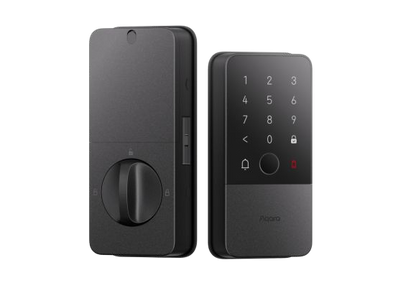

A No-Mortise Smart Lock for Wooden and Metal Doors

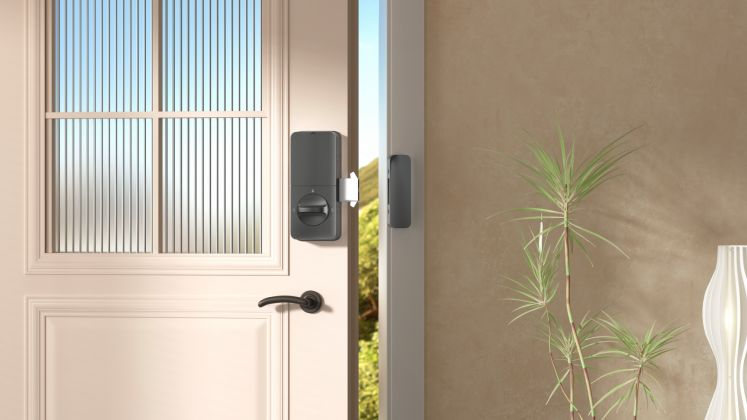

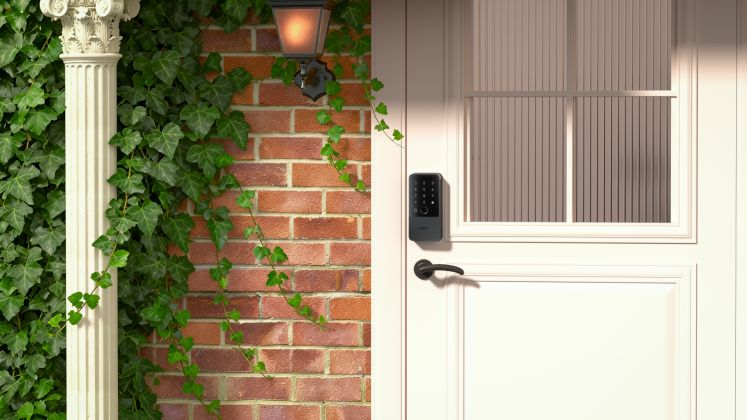

The Aqara U500 Smart Rim Lock mounts onto your existing wooden or metal door without any mortise replacement, giving you a full smart-lock upgrade without altering the door itself — a meaningfully lower-disruption installation than locks that require cutting into the door's structure.
Ways to Unlock
Fingerprint, PIN code, NFC card, Apple Home Key, the Aqara and Matter apps, voice control, and a mechanical key backup — seven ways in, with remote unlock available through a compatible hub.
Matter over Thread
Matter over Thread support connects the U500 natively to Google Home, Apple Home, Alexa and SmartThings, with a gyroscope-based sensor that detects the door's open/closed status for reliable auto-locking rather than relying on a timer alone.
Access Management & Alerts
Set temporary or scheduled PINs for guests and helpers, enable Do Not Disturb or Away mode for privacy or travel, and review unlock history and activity logs through the app. Low-battery alerts and OTA firmware updates keep the lock current without manual intervention.
Build & Power
Aluminium alloy construction with an IP65-rated exterior panel, a mechanical key backup, and an emergency Type-C power port if the battery runs flat.
| Model | DL-D19D (Rim Lock U500) |
|---|---|
| Lock Type | Rear locking knob; surface-mounted retrofit rim lock for wooden and metal doors |
| Unlocking Methods | Fingerprint, Password, Temporary Password, Mechanical Key, NFC, Phone Bluetooth unlock; Voice unlock, Apple Home Key, Samsung Wallet NFC, and Matter unlock all require an Aqara gateway/hub |
| Connectivity | Thread, Bluetooth, NFC built-in; Matter/Home Key/voice/remote functions require an Aqara gateway (hub) |
| Power Source | 4x AA (LR6) 1.5V batteries; Type-C power supply, 5V/1A |
| Warranty | 2 Year Parts and On-Site Warranty. Other accessories not included. |
| Dimensions | Inner Panel: 167.5 x 72.9 x 47.3mm; Outer Panel: 148.7 x 71.7 x 27.3mm |
| Net Weight | Approx. 1400g |
| Door Thickness Range | 20 - 60mm |
| Door Seam Range | 3 - 7mm |
| IP Rating | Outer Panel: IP65; Inner Panel: IP54 |
| Operating Temperature | Inner Panel: -18C ~ +50C; Outer Panel: -35C ~ +66C |
| Operating Humidity | 0 ~ 93% RH, no condensation |
| Fingerprint Capacity | Up to 50 |
| Password Capacity | Up to 75 PIN codes |
| NFC Card Capacity | Up to 25 |
| Door Lock Status Alerts | Unlocked, Locked, Door Opened, Door Closed, Lock Bolt Abnormal |
| Features | Away mode, Do Not Disturb mode, remote control (via hub), automatic locking, volume-based voice control, electronic deadbolt, door status detection, camera linkage |
| Alarm Features | Multiple verification failure alarms, low battery alarms, door not closed/unlocked alarms, mechanical/latch abnormality alarms |
| What is in the Box | Rim Lock U500 x1, Strike Box x1, Mechanical Keys x2, AA batteries x4, Accessories Kit x1, Installation Diagram x1, User Manual x1 |
Frequently Asked Questions
Have questions? We're here to help you.
The Aqara U500 Smart Rim Lock is a retrofit smart lock designed to replace traditional rim lock setups without requiring major door modifications. It offers fingerprint access, PIN codes, Apple Home Key, NFC, app control, and Matter smart home integration.
No. The U500 Rim Lock features a surface-mounted retrofit design that does not require replacing the existing mortise lock body, making installation quicker and less invasive.
The U500 supports fingerprint unlocking, PIN codes, NFC, Bluetooth app unlocking, Apple Home Key, voice control via supported smart home ecosystems, temporary passwords, automation triggers, and mechanical key backup.

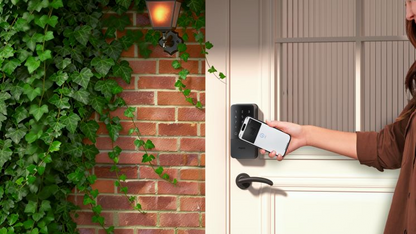

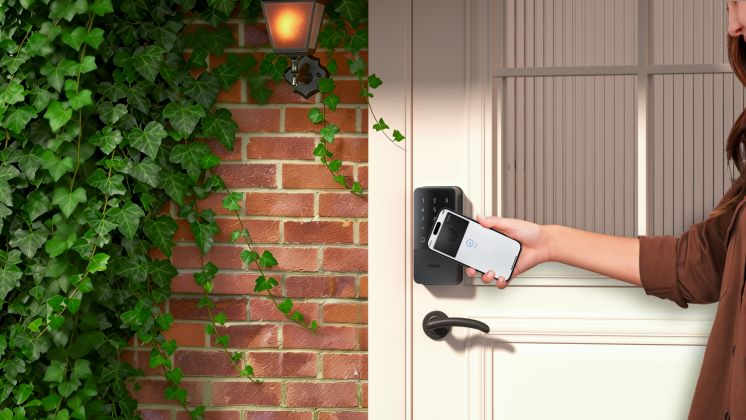

Yes. The Aqara U500 supports Apple Home Key, allowing users to unlock the door using their iPhone or Apple Watch through the Apple Wallet app.
Yes. The U500 supports Matter over Thread, allowing integration with Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Home Assistant, and other Matter-enabled ecosystems.
Yes. Remote unlocking and lock management are supported when the lock is connected to a compatible Aqara Hub or Thread-enabled Matter Controller.
Yes. Users can generate one-time, recurring, or scheduled PIN codes for guests, cleaners, tenants, Airbnb visitors, or family members.
Yes. The U500 features a built-in gyroscope that detects door movement and can automatically lock the door after it closes.
Yes. Through the Aqara Home app, users can view unlock records, access history, battery status, and lock activity logs.
The lock provides low battery notifications through the lock and app. In emergencies, users can temporarily power the lock using a USB-C power source and continue unlocking with their registered credentials.
Yes. The Aqara U500 includes mechanical keys that can be used as a backup unlocking method if required.
Yes. The U500 is suitable for many HDB, condominium, landed property, office, and interior door applications, subject to door compatibility and installation assessment.
