使用Aqara 智能门锁 D100，体验极致的智能家居安全。D100专为现代生活而设计，提供多用户配置文件、闪电般快速的生物识别开锁功能，并可与 Apple Home Key 无缝集成，确保您的家既安全又易于出入。
Real installation photos from our customers.

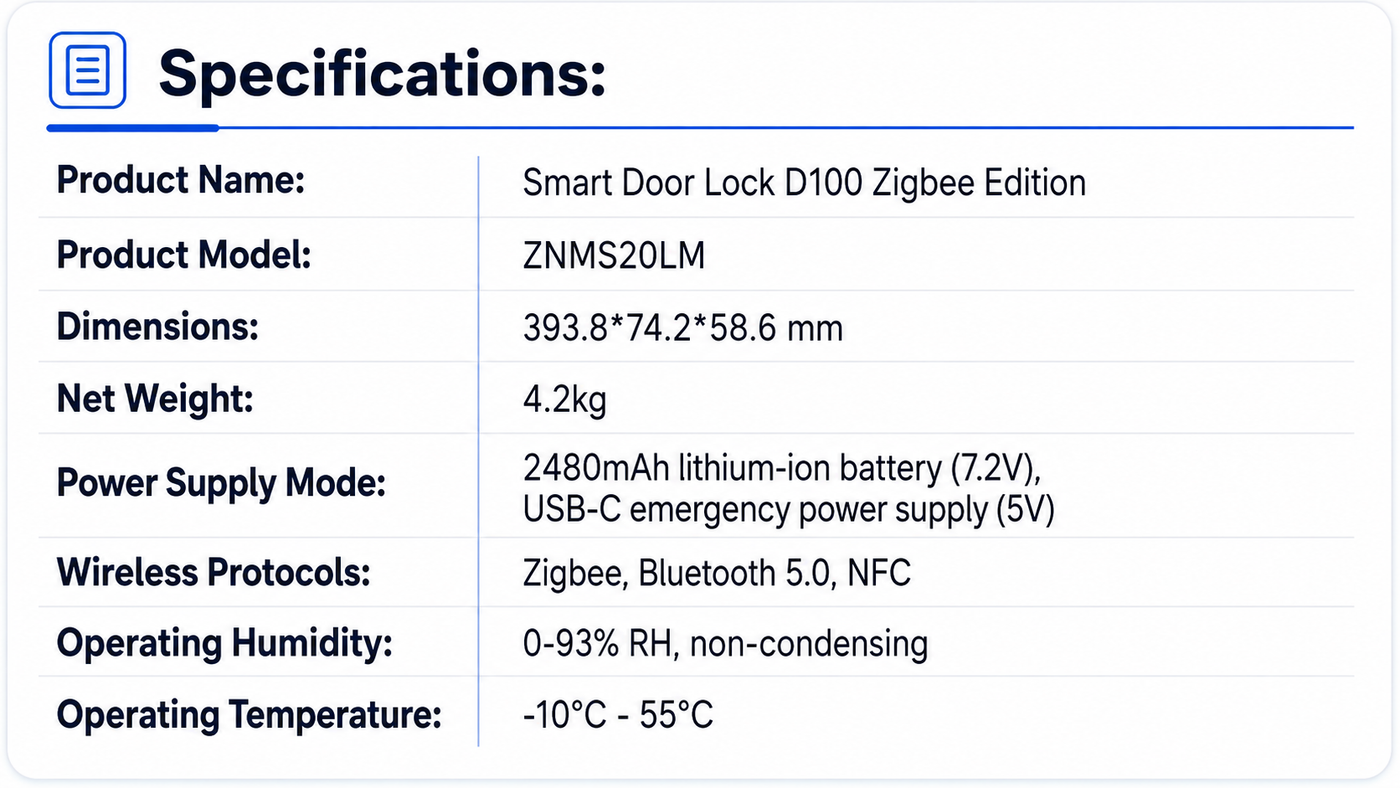

| Model | ZNMS20LM (Smart Door Lock D100 Zigbee Edition) |
|---|---|
| Lock Type | Mortise, fully automatic (push-open, no handle needed) |
| Unlocking Methods | Fingerprint (0.5s recognition), PIN Code, NFC Card, Apple Home Key, Voice Recognition (Siri), App/Bluetooth, Manual Key |
| Connectivity | Zigbee, Bluetooth 5.0, NFC built-in; remote/automation with Apple HomeKit, Alexa, Google Home requires an Aqara Hub (Zigbee) |
| Power Source | 2480mAh lithium-ion battery (7.2V); USB-C emergency power supply (5V) |
| Warranty | 2 Year Parts and On-Site Warranty; 6-month battery warranty. Other accessories not included. |
| Dimensions | 393.8 x 74.2 x 58.6mm |
| Net Weight | 4.2kg |
| Operating Temperature | -10C ~ 55C |
| Operating Humidity | 0 ~ 93% RH, non-condensing |
| Fingerprint Sensor | 3D semiconductor sensor, 360-degree recognition, anti-peep password protection |
| Biometric & Access Capacity | Up to 50 fingerprints, 100 passwords, 100 NFC cards |
| Voice Language | Chinese, English, Russian (configurable via Local Settings Mode) |
| Child Lock | Physical child-lock switch disables the indoor unlock button |
| Fire-Rated Door Use | Certified |
Frequently Asked Questions
Have questions? We're here to help you.
These are not included in the Aqara D100 lock (stand-alone usage) price:
- NFC tags which can be purchased from Interlock if some users such as elderly folks require the tags.
- An Aqara Hub for remote connectivity to Aqara D100 and integration with Apple Homekit / Home Key, Google Assist, etc.
- Integration services for home automation platforms (can be provided by Interlock partners).
Aqara hub is not needed:
- for D100 standalone use i.e. Aqara Home App with Bluetooth connection to D100 lock.
- for D100 use with Apple Homekit (however, a hub is recommended for enhanced remote operations via Aqara App and Aqara Hub).
Aqara hub is needed:
- when D100 remote functions are needed (see other FAQ item).
- when D100 is used with Google Assist.
- for automation with other Aqara devices.
**Note:** D100 works only with Aqara Zigbee 3.0 Hubs, namely: Aqara models M1S, M2 hub, G2H, G3, E1. Older Aqara Hubs are not supported. Non-Aqara Zigbee hubs are not supported.
The Aqara D100 lock works with Apple HomeKit and Apple Home Key technology.
**Apple HomeKit Support:**
- Controlling this HomeKit-enabled Aqara D100 lock away from home or for automation requires an Apple Home hub, which can be an Apple TV (generation 4 with tvOS 12.0+), an iPad (with iOS 12.0+), or a HomePod.
- Apple HomeKit must be in place. Refer to Apple HomeKit documentation.
**Apple Home Key Support:**
- User devices: iPhone (iOS 15 or higher) or an Apple Watch (OS 8 or higher) is required.
- After adding the Aqara D100 Smart Door Lock to Apple HomeKit, a virtual door card (an Apple Home Key) will be generated in the Apple Wallet.
- Apple HomeKit now only allows a single user to access the Home Key. However, if the family also uses Apple HomePod or Apple TV, the Home Key can be shared by inviting the family member via Apple ID.
- The Aqara D100 Apple Home Key will automatically appear on users' devices when they are invited into the HomeKit setup.
**Note:** An Aqara Hub is not required for Apple HomeKit integration, but it is recommended for enhanced remote Aqara D100 lock functions via Aqara App.
Unless stated otherwise, the following remote functions require connectivity setup to Aqara D100 via an Aqara Hub:
- **Remote One-Time-Use pin code** via Aqara Home App. *(Aqara Hub is not required.)*
- **Remote Periodic-Time pin code** via Aqara Home App.
- **Remote notifications and logs** on Aqara Home App.
- **Remote unlock** via Aqara Home App, Apple HomeKit, and Google Assist.
**Note:** Other lock functions can only be done via Aqara Home App onsite (via Bluetooth).
- **One-Time-Use pin code** valid for 20 minutes can be created via Aqara Home App.
- **Periodic-Time pin code** (start date/time - end date/time) can be created via Aqara Home App.
*Example: Between 9 AM - 1 AM, Jan 1, 2025.*
